Voltage 300/500V
Max work TEMP 70°C
Application All
Standard IEC 60227
Certification CCC & ISO

PRODUCT DETAILS

Application

Flexible cables for mobile lightweight, suitable for installation in homes, kitchens, offices, for connection of portable light as hair dryers, washing, machines, refrigerators etc.., Which may be used for cooking and heating appliances provided they are not in contact with hot parts, not suitable for external use, in industrial buildings or for non-domestic portable tools.

Operation Characteristic

1.Rated voltage: 300/500V.

2.Long-term permission working temperature of cable conductor is 70 ºC

3.The minimum allowable bending radius of cable is 6 times of outer diameter of thecable.

Standard

IEC 60227

EN 50525

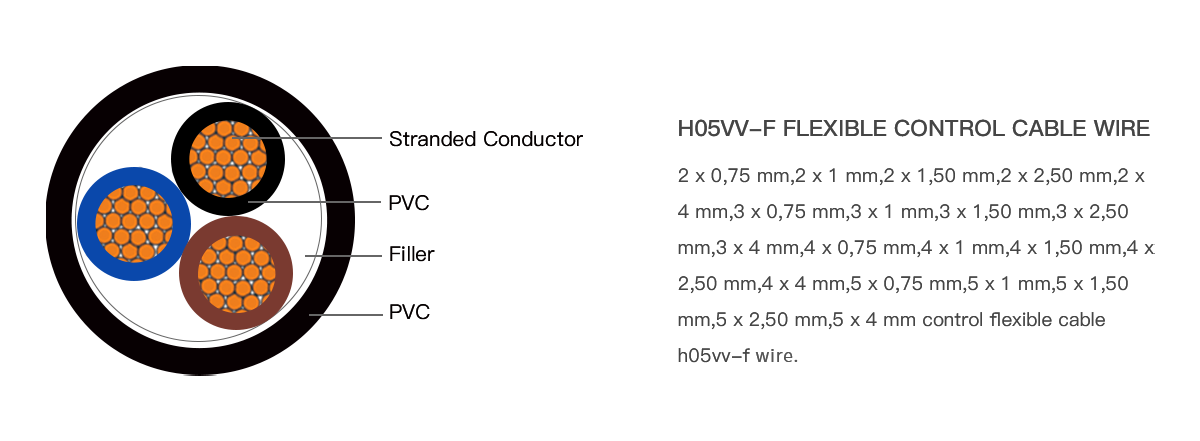

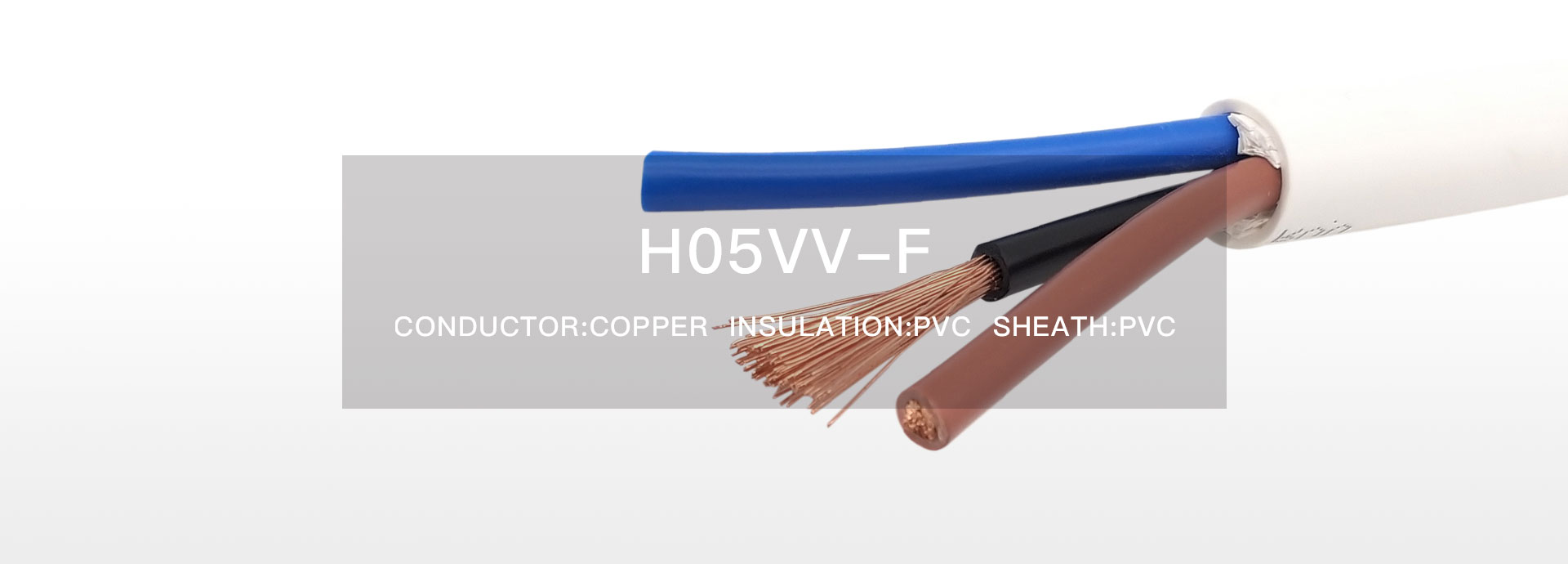

Cable Structure

Conductor: flexible stranded bare copper (Class 5)

Insulation: PVC

Jacket: PVC

Filler: any filler

specifications

Number of conductors nom. cross section area	Strands conductor maximum diameter	Average insulation thickness	Average shealth thickness	Maximum external cable diameter	Cable nominal weight	Max conductor resistance at 20° C	Max current carrying at 30° C in air mobile service
NO. x mm2	mm	mm	mm	mm	kg / km	Ohm / km	A
2 x 0.75 mm	0,21	0,60	0,80	7,2	53,5	26,00	6,0
2 x 1 mm	0,21	0,60	0,80	7,5	61,5	19,50	10,0
2 x 1.50 mm	0,26	0,70	0,80	8,6	82,5	13,50	16,0
2 x 2.50 mm	0,26	0,80	1,00	10,6	127	7,98	20,0
2 x 4 mm	0,31	0,80	1,10	12,1	174	4,95	30,0
3 x 0.75 mm	0,21	0,60	0,80	7,6	63	26,00	6,0
3 x 1 mm	0,21	0,60	0,80	8,0	73	19,50	10,0
3 x 1.50 mm	0,26	0,70	0,90	9,4	103	13,50	16,0
3 x 2.50 mm	0,26	0,80	1,10	11,4	159	7,98	20,0
3 x 4 mm	0,31	0,80	1,20	13,1	218	4,95	30,0
4 x 0.75 mm	0,21	0,60	0,80	8,3	76	26,00	6,0
4 x 1 mm	0,21	0,60	0,90	9,0	92,5	19,50	10,0
4 x 1.50 mm	0,26	0,70	1,00	10,5	129	13,50	16,0
4 x 2.50 mm	0,26	0,80	1,10	12,5	193	7,98	20,0
4 x 4 mm	0,31	0,80	1,20	14,3	269	4,95	30,0
5 x 0.75 mm	0,21	0,60	0,90	9,3	96,5	26,00	6,0
5 x 1 mm	0,21	0,60	0,90	9,8	112	19,50	10,0
5 x 1.50 mm	0,26	0,70	1,10	11,6	162,5	13,50	16,0
5 x 2.50 mm	0,26	0,80	1,20	13,9	243	7,98	20,0
5 x 4 mm	0,31	0,80	1,40	16,1	345	4,95	30,0

service

PROJECT MANAGEMENT: We can manage all of your low voltage cable Project requirements regardless of size or value. Throughout our 20 years of trading we have managed many projects.
Should you have any questions regarding your project please contact a member of our sales team who will be happy to help.

CJDL CABLES: CJDL Cable Company is the supplier of bespoke cable and temporary power cable. We can supply tailor made power leads to your exact any cable size, in any length. We have the enough stock and range of low voltage cables including all sizes and core conﬁgurations 0.3mm2 up to 6mm2. Additionally we hold the full range of flexible control both braided and unbraided up to 6mm2. Any of these cables can be incorporated into customised leads.

STOCK HOLDING: Our range of electrical cables include power, fire performance, shielded,, control and general wiring cables. All of our cables are manufactured to china, European and International standards where applicable.
