Voltage 300/500V
Max work TEMP 70°C
Application All
Standard IEC 60227
Certification CCC & ISO

PRODUCT DETAILS

Description

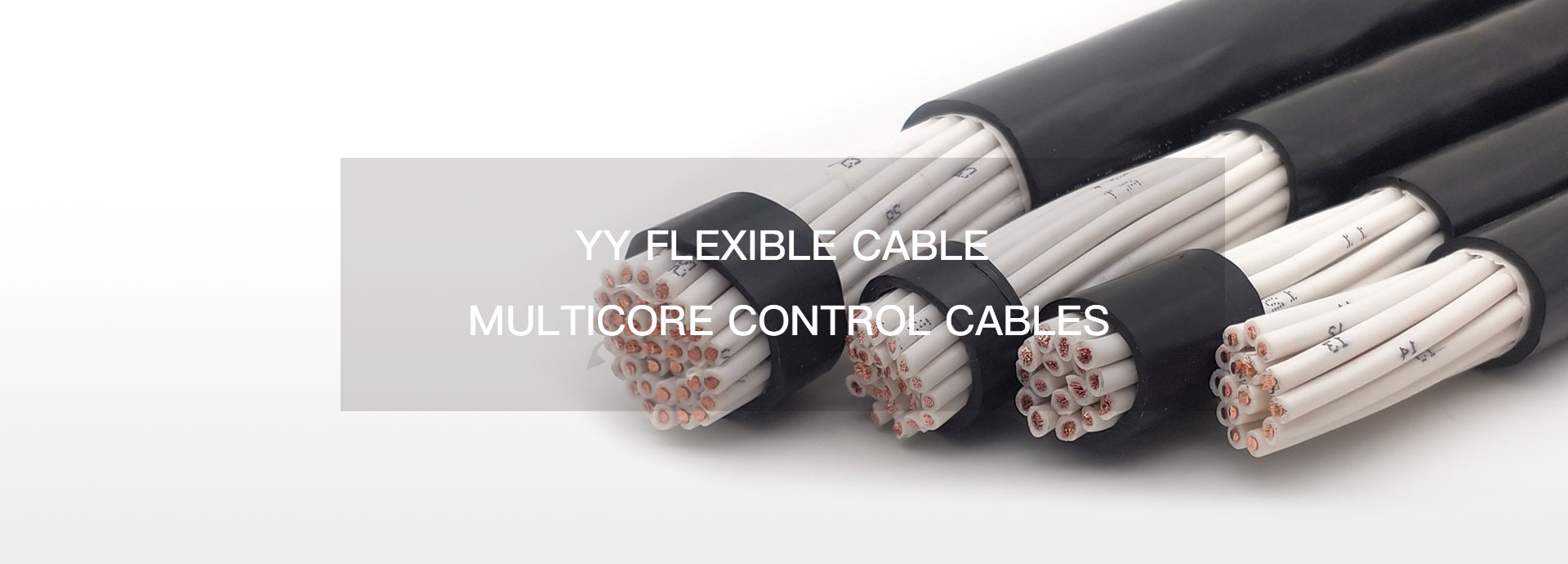

YY multicore cables offer flexibility through the use of fine copper wire stranding and pliable PVC compounds. They are also known as multi-core cables, control flex and control flexible cables.

YY cables designed for a wide range of industrial process automation applications, including signal transmission, measurement, control and regulation.These control cables are often referred to by the application, Suitable for fixed installations or for flexible use in conditions of light mechanical stress. used as interconnecting cable for measuring, controlling or regulation in control equipment for assembly and production lines, conveyors and for computer units.

YY cables are ideal for use on portable or movable equipment or where flexibility will make installation considerably easier. They also offer various degrees of protection against electrical interference and resistance to caustic substances and oils.

Can be used outdoors when protected, and in dry or moist conditions indoors.

Conductors: fine wires of copper stranded. Class 5.

Insulation: PVC Insulated

Cores: multicore

Protective sheath: Flame retardant, oil resistant Special PVC for outstanding flexibility and durability in most hostile environments.

UV stabilised and flame retardant.

Sheath in white or black.

Voltage Rating:

Working: 300/500V

Test: 3000V

Temperature Rating:

Static: -20°C to +80°C

Flexing: -5°C to +70°C

Minimum Bending Radius:
Fixed 6 x cable diameter

Flexing 15 x cable diameter

Relevant Standards

AS/NZS 1125, AS/NZS 3808, IEC 60332-1

specifications

Core*Nominal Cross sectional Area	Strands conductor max diameter	Thickness of insulation	Thickness of sheath	Approximate cable diameter	Max DC resistance of conductor at 20℃
No. x mm2	mm	mm	mm	mm	Ω/km
10 x 0.5 mm	16/0.20	0.6	1.2	11.2	39
12 x 0.5 mm	16/0.20	0.6	1.2	11.6	39
14 x 0.5 mm	16/0.20	0.6	1.2	12.1	39
16 x 0.5 mm	16/0.20	0.6	1.5	13.3	39
19 x 0.5 mm	16/0.20	0.6	1.5	14.0	39
10 x 0.75 mm	24/0.20	0.6	1.2	12.1	26
12 x 0.75 mm	24/0.20	0.6	1.5	13.1	26
14 x 0.75 mm	24/0.20	0.6	1.5	13.7	26
16 x 0.75 mm	24/0.20	0.6	1.5	14.4	26
19 x 0.75 mm	24/0.20	0.6	1.5	15.1	26
24 x 0.75 mm	24/0.20	0.6	1.5	17.4	26
30 x 0.75 mm	24/0.20	0.6	1.5	18.4	26
10 x 1 mm	32/0.20	0.6	1.5	13.4	19.5
12 x 1 mm	32/0.20	0.6	1.5	13.8	19.5
14 x 1 mm	32/0.20	0.6	1.5	14.5	19.5
16 x 1 mm	32/0.20	0.6	1.5	15.2	19.5
19 x 1 mm	32/0.20	0.6	1.5	16.0	19.5
24 x 1 mm	32/0.20	0.6	1.5	18.5	19.5
30 x 1 mm	32/0.20	0.6	1.7	19.9	19.5
10 x 1.5 mm	30/0.25	0.7	1.5	15.3	13.3
12 x 1.5 mm	30/0.25	0.7	1.5	15.8	13.3
14 x 0.5 mm	30/0.25	0.7	1.5	16.6	13.3
16 x 1.5 mm	30/0.25	0.7	1.5	17.5	13.3
19 x 1.5 mm	30/0.25	0.7	1.5	18.4	13.3
10 x 2.5 mm	49/0.25	0.8	1.5	18.0	7.98
