Product Details

Application:

The 600/1000V round aluminum concentric cable is commonly used for service-entrance to power transmission.

Standard:

ASTM-B ; ASTM-D; UL

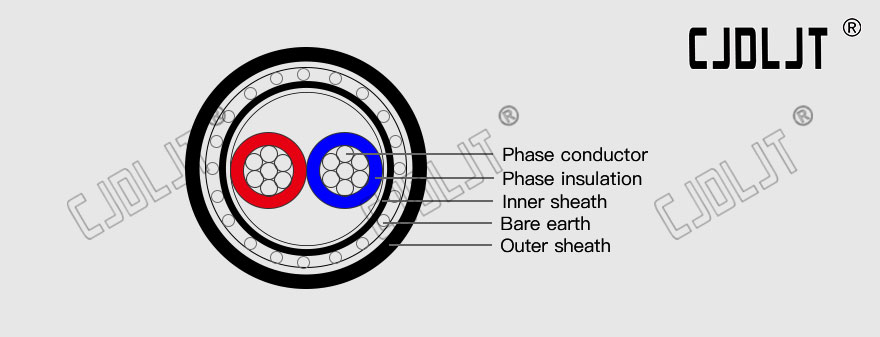

Construction:

1.Conductor: 8000 Series aluminum alloy
2.Insulation: XLPE
3.Cable Inner Sheath:PVC
4. Concentric conductor layer: 8000 Series aluminum alloy
5.Cable Tape: No-absorbent material or OEM
6.Cable outer sheath:XLPE/PVC/PE

Advantages:

1.Factory direct sale
2.Abundant experiences,good quality and cheap price
3.Free sample

Specifications

Technical Data:

8000 Series Aluminum Alloy Conductor
Cable Type	Conductor	Insulation Thickness	Concentric Conductor	Outer Sheath Thickness	O.D of the cable
AWG	mm	mm	mm	mm	mm
3X8AWG	7/1.23	1.14	65/0.405	1.14	11.3x17.3
3X6AWG	7/1.55	1.14	65/0.511	1.14	13.2x20.0
3X4AWG	7/1.96	1.14	65/0.643	1.52	14.7x22.9
3X2AWG	7/2.47	1.14	65/0.823	1.52	16.6x26.3

Service

PROJECT MANAGEMENT: We can manage all of your low voltage cable Project requirements regardless of size or value. Throughout our 20 years of trading we have managed many projects.
Should you have any questions regarding your project please contact a member of our sales team who will be happy to help.

CJDL CABLES: CJDL Cable Company is the supplier of bespoke cable and temporary power cable. We can supply tailor made power leads to your exact any cable size, in any length. We have the enough stock and range of low voltage cables including all sizes and core conﬁgurations 0.3mm2 up to 6mm2. Additionally we hold the full range of flexible control both braided and unbraided up to 6mm2. Any of these cables can be incorporated into customised leads.

STOCK HOLDING: Our range of electrical cables include power, fire performance, shielded,, control and general wiring cables. All of our cables are manufactured to china, European and International standards where applicable.
