Product Details

Application:

for use in aerial, direct burial,conduit,open tray and underground duct installation.It’s maximum temperature of operation is 70℃( PVC or PE insulation) or 90℃ (XLPE insulation) and it’s voltage of service for all the applications is 600V.

Standard:

NTP IEC 60502-1 BS7870

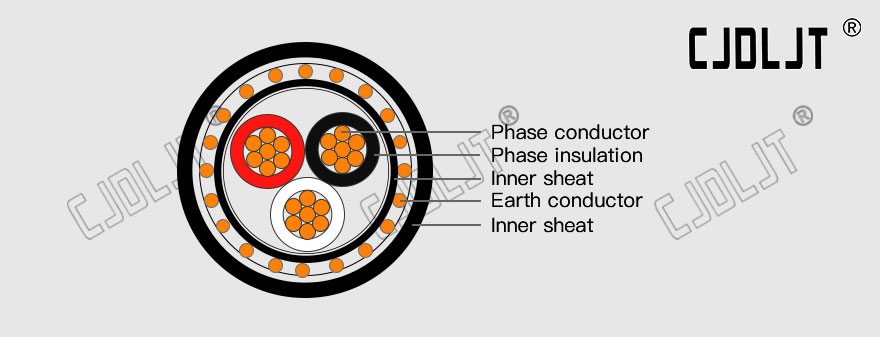

Construction:

1.Conductor: Copper class 2
2.Insulation: XLPE
3.Sheath: XLPE/PE/PVC
4.Phase Color Code(SNE): Red, Black & White
5.Phase Color Code (CNE): Black

Advantages:

1.Rich supply experience with best price.
2.18 month guarantee period.
3.Sample free available.

Specifications

Cable Size	Conductor size (AAC)	Insulation thickness (XLPE)	Concentric conductor (AAAC 8000)	Outer sheath thickness (PVC)	Overall Diameter	Cable Mass
mm²	N/mm	mm	N/mm	mm	mm	kg/km
3*10/10	7/1.35	1.0	51/0.50	1.6	18.4	645

Service

PROJECT MANAGEMENT: We can manage all of your low voltage cable Project requirements regardless of size or value. Throughout our 20 years of trading we have managed many projects.
Should you have any questions regarding your project please contact a member of our sales team who will be happy to help.

CJDL CABLES: CJDL Cable Company is the supplier of bespoke cable and temporary power cable. We can supply tailor made power leads to your exact any cable size, in any length. We have the enough stock and range of low voltage cables including all sizes and core conﬁgurations 0.3mm2 up to 6mm2. Additionally we hold the full range of flexible control both braided and unbraided up to 6mm2. Any of these cables can be incorporated into customised leads.

STOCK HOLDING: Our range of electrical cables include power, fire performance, shielded,, control and general wiring cables. All of our cables are manufactured to china, European and International standards where applicable.
