Application:
The round concentric cable 600/1000V is used as electric service from the power distribution ,to transmit the power to the business center ,residential and rural areas.
Standard:
ASTM-B ; ASTM-D; UL

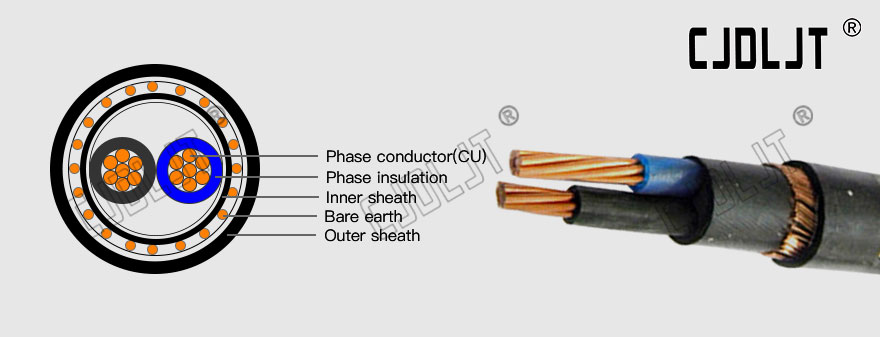

Construction:
1.Conductor: Copper class 2
2.Insulation: XLPE
3.Cable Inner Sheath:PVC
4. Concentric conductor layer: Copper
5.Cable Tape: No-absorbent material or OEM
6.Cable outer sheath:XLPE/PVC/PE
Advantages:
1.Factory direct sale
2.Abundant experiences,good quality and cheap price
3.Free sample
Technical Data:
Copper Conductor |
|||||
Cable |
Conductor |
Insulation |
Concentric |
Outer Sheath |
O.D of the cable |
AWG |
mm |
mm |
mm |
mm |
mm |
3X8AWG |
7/1.23 |
1.14 |
65/0.405 |
1.14 |
11.3x17.3 |
3X6AWG |
7/1.55 |
1.14 |
65/0.511 |
1.14 |
13.2x20.0 |
3X4AWG |
7/1.96 |
1.14 |
65/0.643 |
1.52 |
14.7x22.9 |
3X2AWG |
7/2.47 |
1.14 |
65/0.823 |
1.52 |
16.6x26.3 |
