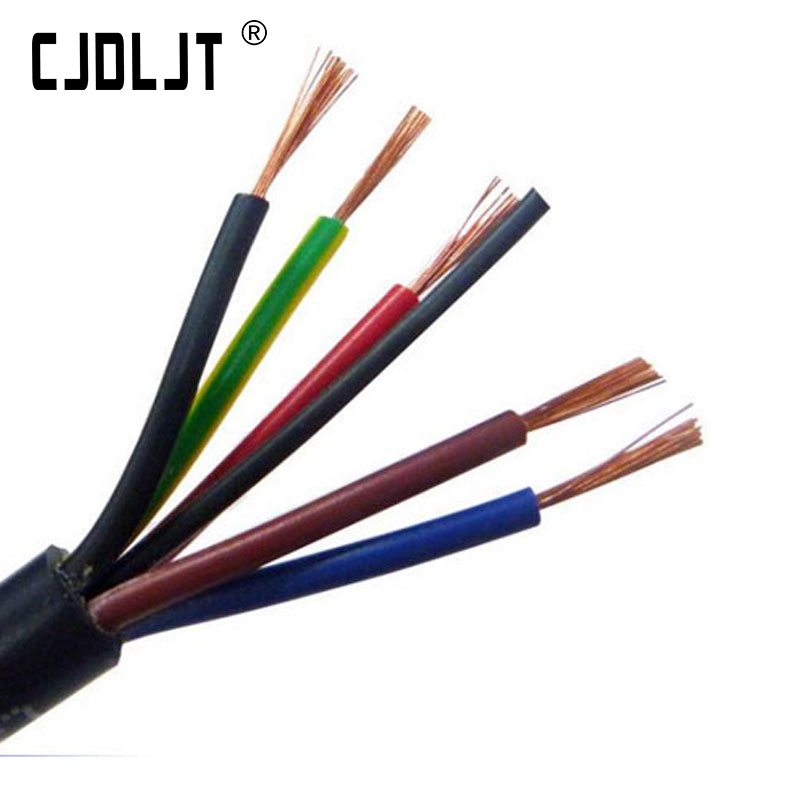

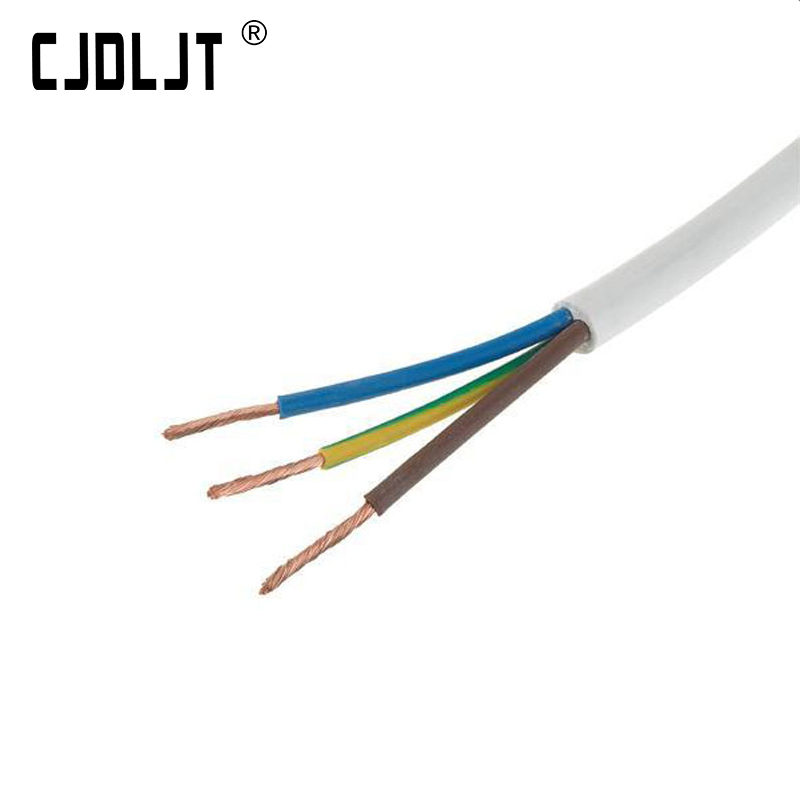

PVC insulated and sheathed power cable standard and parameter data
PVC insulated and sheathed power cable Execution standard
XLPE insulated power cable performance conforms to GB12706.2-1991 equivalent IEC60502-1997, flame retardant performance conforms to GB12666.5-1990 equivalent IEC332-1992. (Not applicable to non-flame retardant cables)
PVC insulated and sheathed power cable Use characteristics
Use characteristics: the rated working voltage of the cable U0/U 0.6/1KV;
Test voltage (duration ≤ 5min) 3.5KV;
Cable conductor long-term working temperature ≤ 70 ° C;
When short circuit (duration ≤ 5s) cable conductor temperature ≤ 160 ° C;
When laying the cable, the smaller bending radius single core cable should be ≥ 10 times the outer diameter of the cable, and the armored cable should be ≥ 12 times the outer diameter of the cable. When the cable is laid, the ambient temperature is ≥ 0 °C. When it is lower than 0 °C, the temperature is pre-heated, and it is not restricted by the drop when laying.
PVC insulated and sheathed power cable Technical indicators
Technical indicators: The DC resistance of the conductor is the same as that of the cross-section cable of the same cross section; the insulation resistance of the finished cable is converted to 20 °C ≥ 36.7 MΩ.km; at room temperature, it is subjected to AC 50Hz, 3.5KV 5min test.
PVC insulated and sheathed power cable parameter data
PVC insulated PVC sheathed power cable OD
|
Cross-sectional area |
core |
|
1 |
2 |
3 |
4 |
3+1 |
5 |
3+2 |
4+1 |
|
1.5 |
6.6 |
10.6 |
11.0 |
— |
— |
— |
— |
16.0 |
|
2.5 |
7.0 |
11.5 |
11.9 |
— |
— |
— |
— |
17.0 |
|
4 |
7.9 |
13.6 |
13.8 |
14.8 |
14.6 |
16.0 |
15.5 |
19.0 |
|
6 |
8.5 |
14.5 |
14.9 |
16.0 |
16.0 |
17.0 |
17.5 |
23.5 |
|
10 |
9.7 |
16.9 |
17.8 |
19.3 |
18.9 |
19.0 |
19.0 |
28.0 |
|
16 |
10.7 |
18.9 |
19.9 |
21.8 |
21.5 |
24.0 |
23.0 |
31.0 |
|
25 |
12.4 |
22.8 |
24.6 |
26.5 |
25.6 |
29.0 |
27.0 |
32.5 |
|
35 |
13.6 |
25.2 |
26.8 |
29.2 |
27.9 |
33.0 |
28.0 |
36.0 |
|
50 |
15.8 |
25.1 |
25.4 |
33.7 |
28.7 |
33.0 |
32.5 |
41.5 |
|
70 |
17.6 |
27.0 |
27.7 |
34..8 |
32.5 |
36.0 |
36.0 |
45.0 |
|
95 |
20.7 |
28.8 |
32.1 |
39.6 |
37.3 |
42.0 |
41.0 |
49.0 |
|
120 |
22.0 |
31.2 |
35.1 |
42.9 |
39.9 |
45.0 |
45.0 |
54.0 |
|
150 |
24.0 |
34.7 |
38.9 |
47.8 |
44.6 |
50.0 |
48.0 |
61.0 |
|
185 |
26..5 |
37.5 |
42.9 |
53.0 |
50.3 |
55.0 |
53.0 |
67.0 |
