Product Details

Application

Flexible cables for mobile lightweight, suitable for installation in homes,

kitchens, offices, for connection of portable light as hair dryers, washing

machines, refrigerators etc.., Which may be used for cooking and heating

appliances provided they are not in contact with hot parts, not suitable for

external use, in industrial buildings or for non-domestic portable tools.

Operation Characteristic

1.Rated voltage: 300/500V.

2.Long-term permission working temperature of cable conductor is 70 ºC

3.The minimum allowable bending radius of cable is 6 times of outer diameter of thecable.

Standard

IEC 60227

EN 50525

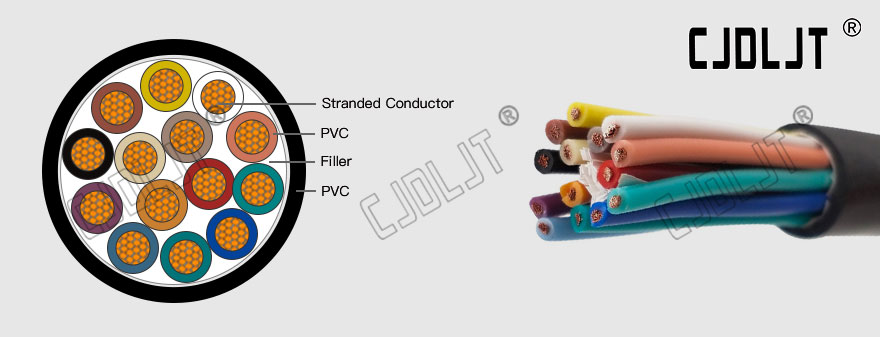

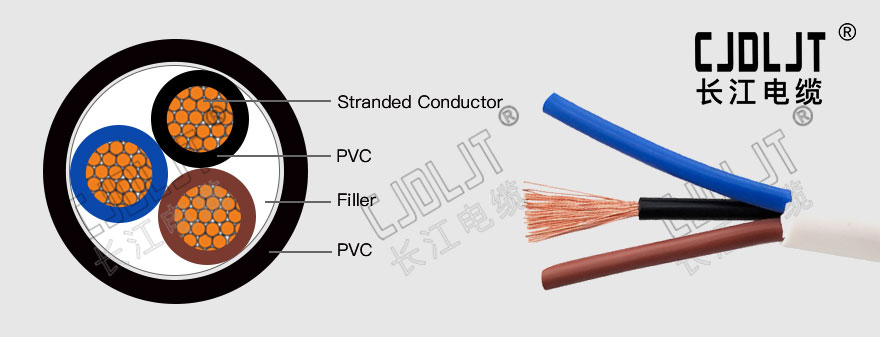

Cable Structure

Conductor: Conductor stranded bare copper (Class 5)

Insulation: PVC

Jacket: PVC

Filler: any filler

Specifications

Number of conductors nom. cross section area	Strands conductor maximum diameter	Average insulation thickness	Average shealth thickness	Maximum external cable diameter	Cable nominal weight	Max conductor resistance at 20° C	Max current carrying at 30° C in air mobile service
n° x mm2	mm	mm	mm	mm	kg / km	Ohm / km	A
2 x 0,75 mm	0,21	0,60	0,80	7,2	53,5	26,00	6,0
2 x 1 mm	0,21	0,60	0,80	7,5	61,5	19,50	10,0
2 x 1,50 mm	0,26	0,70	0,80	8,6	82,5	13,50	16,0
2 x 2,50 mm	0,26	0,80	1,00	10,6	127	7,98	20,0
2 x 4 mm	0,31	0,80	1,10	12,1	174	4,95	30,0
3 x 0,75 mm	0,21	0,60	0,80	7,6	63	26,00	6,0
3 x 1 mm	0,21	0,60	0,80	8,0	73	19,50	10,0
3 x 1,50 mm	0,26	0,70	0,90	9,4	103	13,50	16,0
3 x 2,50 mm	0,26	0,80	1,10	11,4	159	7,98	20,0
3 x 4 mm	0,31	0,80	1,20	13,1	218	4,95	30,0
4 x 0,75 mm	0,21	0,60	0,80	8,3	76	26,00	6,0
4 x 1 mm	0,21	0,60	0,90	9,0	92,5	19,50	10,0
4 x 1,50 mm	0,26	0,70	1,00	10,5	129	13,50	16,0
4 x 2,50 mm	0,26	0,80	1,10	12,5	193	7,98	20,0
4 x 4 mm	0,31	0,80	1,20	14,3	269	4,95	30,0
5 x 0,75 mm	0,21	0,60	0,90	9,3	96,5	26,00	6,0
5 x 1 mm	0,21	0,60	0,90	9,8	112	19,50	10,0
5 x 1,50 mm	0,26	0,70	1,10	11,6	162,5	13,50	16,0
5 x 2,50 mm	0,26	0,80	1,20	13,9	243	7,98	20,0
5 x 4 mm	0,31	0,80	1,40	16,1	345	4,95	30,0
