Application
The products are suitable for the wiring of electrical controlling equipments and instrument,monitoring and controlling return circuit,electrical protection and measurement in power distribution unit under the circumstance that the rated voltage is up to 450/750V AC.
Shielded control cable can avoid electromagnetic interference inside and outside the circuit. It is suitable for indoor, cable trench, pipeline and other fixed occasions requiring shielding. It is more suitable for areas with large signal interference.
Standard
GB/T 9330

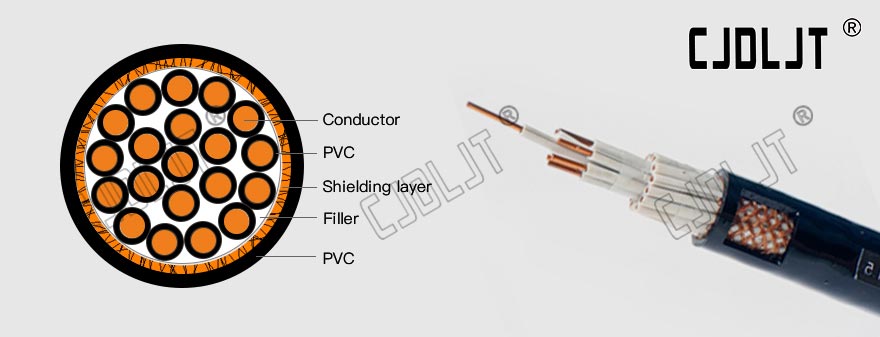

Structure
Conductor：Copper
Insulation：PVC or XLPE
Shield：Copper Wire Braid
Sheath：PVC
Using characteristic
Rated voltage: 450 / 750V
Cable Working Max temperature: PVC insulated 70 ℃, XLPE insulated 90 ℃
Short (the longest duration of no more than 5s) of the conductor temperature does not exceed 160 ℃.
Cabling ambient temperature should not be below 0 ℃, or need preheated.
Installation bending radius
A) non-armored cable layer shall be not less than 6 times the cable diameter;
B) with armor or copper screened cable, not less than 12 times the cable diameter;
C) with a shield layer flexible cable, not less than 6 times the cable diameter.

Specifications

Nominal cross sectional area of conductor	Approximate Overall Diameter	Max DC resistance of conductor at 20℃	Min DC resistance of insulation at 70℃
No×mm2	mm	Ω/km	Ω/km
12×0.75	13.01	24.5	0.012
12×1.0	13.64	18.1	0.011
12×1.5	15.76	12.1	0.011
12×2.5	18.26	7.41	0.010
14×0.75	13.55	24.5	0.012
14×1.0	14.46	18.1	0.011
14×1.5	16.45	12.1	0.011
14×2.5	19.49	7.41	0.010
16×0.75	14.43	24.5	0.012
16×1.0	15.13	18.1	0.011
16×1.5	17.25	12.1	0.011
16×2.5	20.47	7.41	0.010
19×0.75	15.07	24.5	0.012
19×1.0	15.82	18.1	0.011
19×1.5	18.07	12.1	0.011
19×2.5	21.47	7.41	0.010
