Product Details

application

Adapted to communicate audio, radio, audio system, burglar alarm system, intelligent automation, automatic meter reading systems, fire systems to be anti-interference circuit is connected, efficient and secure data transmission cable.
NH-RVVP compared RVVP, a layer of mica tape wrapped on the conductor, the cable having excellent fire resistance.

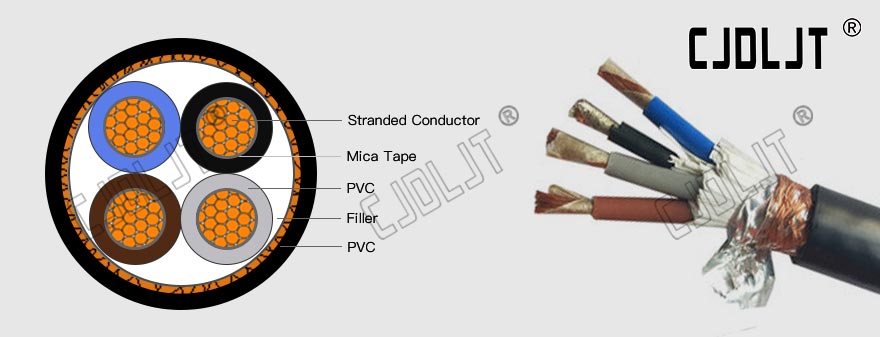

Structure
Conductor: annealed multicore stranded bare copper
Insulation: PVC insulation
shield: copper mesh braided shield
sheath: PVC sheath
Refractory: mica tape
Standards
JB / T8734.5-2012
usage characteristics
rated voltage 300 / 500v
cable working temperature not higher than 70 ℃.
Short (the longest duration of no more than 5s) of the conductor temperature does not exceed 160 ℃.
Cabling ambient temperature should not be below 0 ℃, or need preheated.
Installation bending radius
a) non-armored cable layer shall be not less than 6 times the cable diameter;
B) with armor or copper screened cable, not less than 12 times the cable diameter;
C) with a shield layer flexible cable, not less than 6 times the cable diameter.

Specifications

Core Number*Section mm²	Number/Diameter No/mm	Insulation thickness mm	Sheath Thickness mm	Maximum Resistance of Copper Conductor at 20℃ Ω/km		Minimum Insulation Resistance at 70 ℃ Ω/km	Reference Diameter mm
				Maximum Resistance of Copper Conductor at 20℃ Ω/km
				Copper core	Tinned copper
8 × 0.5	28 / 0.15	0.5	0.8	39	40.1	0.012	8.4
8 × 0.75	42 / 0.15	0.6	0.9	26	26.7	0.011	9.7
8 × 1	32 / 0.20	0.6	0.9	19.5	20	0.01	10
8 × 1.5	48 / 0.20	0.7	1.1	13.3	13.7	0.01	12.1
8 × 2.5	77 / 0.20	0.8	1.2	7.98	8.21	0.009	14.1
8 × 4	56 / 0.30	0.8	1.2	4.95	5.09	0.007	16.6
8 × 6	84 / 0.30	0.8	1.2	3.3	3.39	0.006	18.4
10 × 0.5	28 / 0.15	0.5	0.8	39	40.1	0.012	9.8
10 × 0.75	42 / 0.15	0.6	0.9	26	26.7	0.011	11.4
10 × 1	32 / 0.20	0.6	0.9	19.5	20	0.01	11.8
10 × 1.5	48 / 0.20	0.7	1.1	13.3	13.7	0.01	14.2
10 × 2.5	77 / 0.20	0.8	1.2	7.98	8.21	0.009	16.6
