0.6/1KV AAAC / ACSR XLPE / PE Insulation ABC twist cable

0.6/1KV AAAC/ACSR XLPE/PE Insulation twist cable AAAC conductor has been widely used in power transmission lines and electricity distribution lines with various voltage levels

Product Details

APPLICATIONS:

Primarily used for overhead service drop applications,such as: street lighting, outdoor lighting and temporary service for construction. To be used at voltages of 600v phase-to-phase or less and conductor temperatures not to exceed 90℃ for cross-linked polyethylene(XLPE) insulated conductors.

Aerial Bundle Cable (ABC cable) is a very innovative concept for overhead power distribution as compared to the conventional bare conductor overhead distribution system. It provides higher level of safety and reliability, lower power

losses and ultimate system economy by reducing installation,maintenance and operative cost. The cables are designed for aerial power lines and room entrance wires with AC rated voltage 1kV and below.

STANDARDS

 GB/T12527, IEC60502, NF C 33-209, BS 7870, ANSI/ICEA S-76-474 AS/NZS 3560.1 etc.



PRODUCTION RANGE

Rated Voltage U0/U(Um) (KV) : 0.6/1(1.2) No. of cores : 1 , 2 , 3, 4 , 5, 3+1 , 4+1 ,3+2

Nominal cross-section(mm2): 10~240

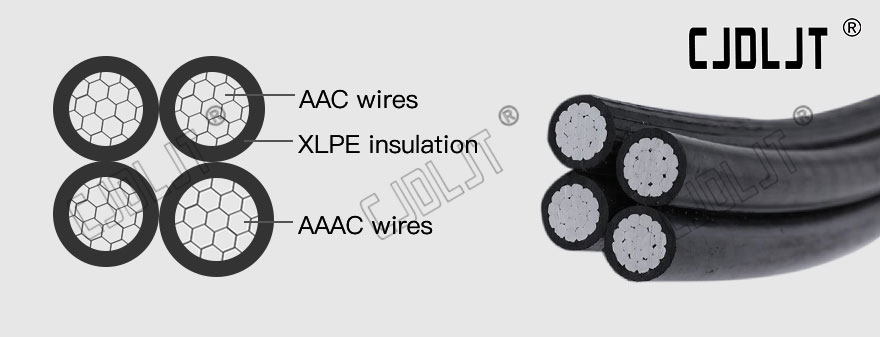

CONSTRUCTION

Phase conductors: Round stranded or compacted 1350-H19 aluminium or Copper conductor ,AAAC,ACSR

Neutral or messenger conductor: Round stranded or compacted 6201 aluminium alloy or AAC ,ACSR

Street lighting conductor: Round stranded or compacted Aluminium conductor

Insulation : XLPE( UV-resistant)

Specifications

PRODUCTS TYPE

Cable Name Description Application
Covered line wire Service drop cable XLPE insulated aerial cables power circuit transmission in urban streets and buildings.
Insulated aerial cables Steel Reinforced Aluminium Wire with XLPE insulated aerial cable
XLPE insulated aerial cables For aerial power transmission application,able to bear moderate pulling force.

Service

PROJECT MANAGEMENT
We can manage all of your low voltage cable Project requirements regardless of size or value. Throughout our 20 years of trading we have managed many projects.
Should you have any questions regarding your project please contact a member of our sales team who will be happy to help.
CJDL CABLES
CJDL Cable Company is the supplier of bespoke cable and temporary power cable. We can supply tailor made power leads to your exact any cable size, in any length. We have the enough stock and range of low voltage cables including all sizes and core configurations 0.3mm2 up to 6mm2. Additionally we hold the full range of flexible control both braided and unbraided up to 6mm2. Any of these cables can be incorporated into customised leads.
STOCK HOLDING
Our range of electrical cables include power, fire performance, shielded,, control and general wiring cables. All of our cables are manufactured to china, European and International standards where applicable.
