Product Details

PRODUCT APPLICATION

Bare overhead conductors, especially in the form of Aluminum Conductors Steel Reinforced(ACSR), have been widely used for Overhead Transmission Lines as the most cost-effective and dependable product.

As the name implies, ACSR is a concentrically stranded conductor composed of one or more layers of hard-drawn EC grade Aluminum Wires over a high strength coated steel core. The core may be single wire or stranded, depending on the size. Because of the numerous stranding combinations of aluminum and steel wires that may be used, it is possible to vary the portions of aluminum and steel so as to obtain the most suitable relation between current carrying capacity and mechanical strength for each application.

ACSR has long been widely used as overhead high tension transmission lines and has an established reputation for economy and dependability.

CONSTRUCTION

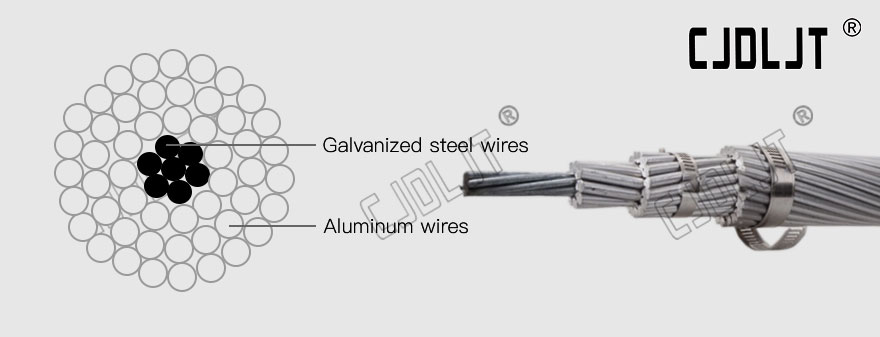

ACSR is concentrically stranded conductor with one or more layers of Aluminium wire hard-drawn 1350-H16 on the galvanized steel wire core. The core may be single wire or stranded depending on the size. Steel wire is available in Class A or B galvanization as corrosion protection.

ACSR is according to electrical and mechanical strength requirements of transmission or distribution cable, can provides an appropriate design combining the quantity of Aluminium and galvanized steel wires.

Specifications

SPECIFICATION OF ACSR BS215

Code name	Area	No of Aluminium wires/Diameter	No of Steel wires/Diameter	Area of Aluminium	Area of Steel	Cable Area	Cable diameter	Approximate mass	Caculated breaking load
AI.No.	mm2	n/mm	n/mm	mm2	mm2	mm2	mm	kg/km	kN
Mole	10	6/1.50	1/1.50	10.56	1.76	12.39	3.97	42	4.14
Squirrel	20	6/2.11	1/2.11	20.97	3.49	24.43	5.58	65	6.13
Gopher	25	6/2.36	1/2.36	26.23	4.37	30.62	6.24	106	9.61
Weasel	30	6/2.59	1/2.59	31.6	5.27	36.88	6.85	128	11.45
Fox	35	6/2.79	1/2.79	36.66	6.11	42.77	7.38	141	12.55
Ferret	40	6/3.00	1/3.00	42.39	7.07	49.48	7.94	172	15.20
Rbbit	50	6/3.35	1/3.35	52.86	8.81	61.70	8.86	214	18.35
Mink	60	6/3.66	1/3.66	63.09	10.52	73.71	9.69	255	21.67
Skunk	60	12/2.59	7/2.59	63.19	36.86	100.30	11.30
Beaver	70	6/3.99	1/3.99	74.98	12.50	87.29	10.54	275	23.36
Horse	70	12/2.79	7/2.79	73.33	42.77	116.20	12.16	538	61.20
Racoon	75	6/4.10	1/4.10	79.18	13.20	92.40	10.85	510	58.22
Otter	80	6/4.22	1/4.22	83.88	13.98	97.86	11.16
Cat	90	6/4.50	1/4.50	95.38	15.90	111.30	11.90	404.7	34.38
Hare	100	6/4.72	1/4.72	104.93	17.49	122.50	12.49	404.7	34.38
Dog	100	6/4.72	7/1.57	104.93	13.54	118.50	12.28	394	32.70
Hyena	100	7/4.39	7/1.93	105.90	20.47	122.50	12.49	526	47.96
Leopard	125	8/5.28	7/1.75	175.08	16.83	118.50	12.28
Coyote	125	26/2.54	7/1.91	131.68	20.05	126.20	12.68	502	45.51
Congar	125	18/3.05	1/3.05	131.44	7.30	137.50	13.23	397	29.10
Tiger	125	30/2.36	7/2.36	131.16	20.60	161.70	14.35	675	64.94
Dingo	150	18/3.35	1/3.35	158.57	8.81	167.50	1460	506	35.70
Wolf	150	30/2.59	7/2.59	157.98	36.86	194.90	15.75	726	69.20
Caracal	175	18/3.61	1/3.61	184.14	10.23	194.50	15.74	587	41.10
Lynx	175	30/2.79	7/2.79	183.32	42.77	326.20	20.38	842	79.80
Jaguar	200	18/3.86	1/3.86	210.53	11.70	222.30	16.82	671	46.55
Panther	200	30/3.00	7/3.00	211.95	49.46	261.50	18.25	974	92.25
Lion	225	30/3.18	7/3.18	238.15	55.57	294.20	19.35	1106.6	101.70
Bear	250	30/3.35	7/3.35	264.29	61.67	325.60	20.36	1106.6	101.70
Goat	300	30/3.71	7/3.71	324.14	75.63	400.00	22.57	1401	124.20
Sheep	350	30/3.99	7/3.99	374.92	87.48	461.40	24.24	1401	124.20
Antilope	350	54/2.97	7/2.97	373.92	48.47	421.50	23.17	1501	123.00
Bizon	350	54/3.00	7/3.00	381.51	49.46	431.30	23.43	1502	123.00
Deer	400	30/4.27	7/4.27	429.38	100.19	529.50	25.96
Zebra	400	54/3.18	7/3.18	428.66	55.57	484.50	24.84	1621	131.90
ELK	450	30/4.50	7/4.50	476.89	111.27	588.3	27.37
Camel	450	54/3.35	7/3.35	475.72	61.67	536.8	26.14	1703	138.60
Moose	500	54/3.53	7/3.53	528.22	68.47	597.2	27.57	1886	153.50
Finch	500	54/3.65	19/2.29	564.74	78.22	642.9	28.61	2102	172.40
