Product Details

APPLICATION

Primarily used for 120 volt overhead service applications such as street lighting,outdoor lighting,and temporary service for construction. To be used at voltage of 600 volts phase-to-phase or less and at conductor temperatures not to exceed 75°C for polyethylene insulated conductors or 90°C for crosslinked polyethylene(XLPE) insulated conductors.

STANDARD：

ASTM B230, B231, B232 and B-399 ,B498,ICEA S-76-474

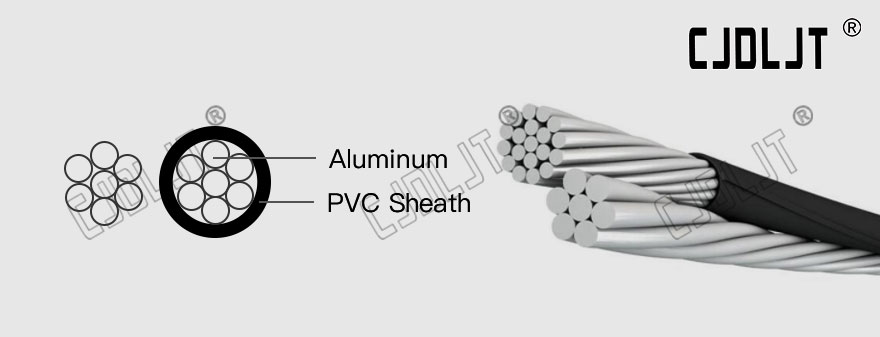

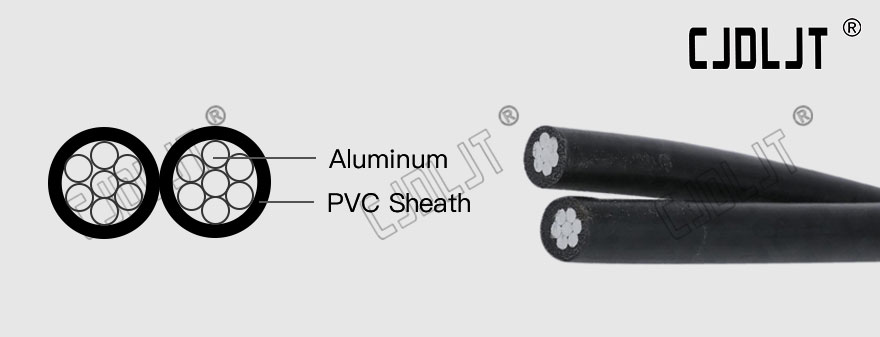

CONSTRUCTION

The phase conductors are concentrically stranded compressed 1350-H19 aluminum and insulated polyethylene or crosslinked polyethylene(XLPE), The neutral messengers are concentrically stranded AAC, ACSR, or 6201 aluminum alloy.

Specifications

TECHNICAL PARAMETERS:

Code Name	Phase Conductor			Bare Neutral		Approx.Weight
	Size	Stranding	Insulation Thickness	Size	Stranding	XLPE	PE
	AWG	-	mil	AWG	-	lbs/1000ft
AAC Neutral Messenger
Pekingese	6	Solid	45	6	7/w	63.5	61.7
Collie	6	7/w	45	6	7/w	66.8	63.1
Dachshund	4	Solid	45	4	7/w	95.5	93.4
Spaniel	4	7/w	45	4	7/w	100.5	95.4
Doberman	2	7/w	45	2	7/w	152.7	145.7
Malemute	1/0	19/w	60	1/0	7/w	242.6	234.2
6201 Alloy Neutral Messenger
Chihuahua	6	Solid	45	6	7/w	67.6	65.8
Vizsla	6	7/w	45	6	7/w	70.9	67.2
Harrier	4	Solid	45	4	7/w	102.0	99.9

Code Name	Phase Conductor				Bare Neutral		Approx.Weight
	Size		Stranding	Insulation Thickness	Size	Stranding	XLPE	PE
	AWG		-	mil	AWG	-	lbs/1000ft
ACSR Neutral Messenger
Setter	6		Solid	45	6	6/1	75.0	73.2
Shepherd	6		7/w	45	6	6/1	78.3	74.6
Eskimo	4		Solid	45	4	6/1	113.7	111.6
Terrier	4		7/w	45	4	6/1	118.7	113.6
Chow	2		7/w	45	2	6/1	181.7	174.7
Bull	1/0		19/w	60	1/0	6/1	288.7	280.3
6201 Alloy Neutral Messenger
Whippet		4	7/w	45	4	7/w	107.0	101.9
Schnauzer		2	7/w	45	2	7/w	163.3	156.2
Heeler		1/0	19/w	60	1/0	7/w	259.2	250.8

Note:

(1)Designated sizes are: ACSR 6/1 diameter equivalent and AAC with equivalent resistivity per ASTM B-399 for 6201.

(2)Conductor temperature of 90°C for XLPE, 75°C for PE; ambient temperatures of 40°C; emissivity 0.9; 2ft./sec/wind in sun.
