Product Details

APPLICATION

To be used at cotages of 600V phase-to-phase or less and at conductor temperatures not to exceed 75oC for polyethylene insulated conductors or 90oC for crossliked polyethylene(XLPE) insulated conductors. The assembled insulated conductor shall be suitable for use in a system having a standard operating voltage not exceeding 600/1000V. The cores of an aerial bundled conductor shall be laid-up with a left-hand lay. The length of lay shall be 55-75 times the diameter of a phase conductor.

CONSTRUCTION

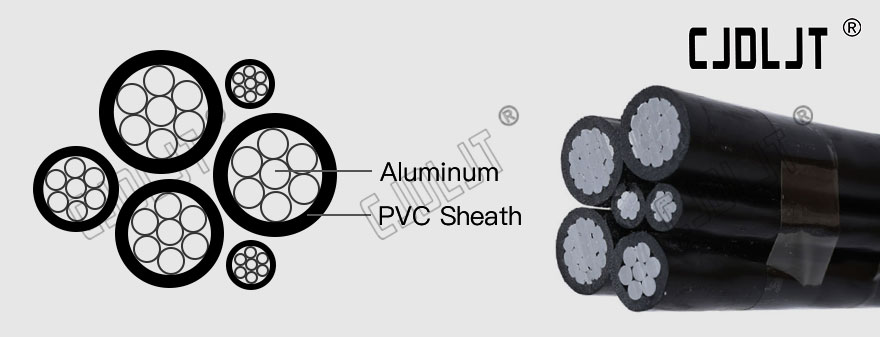

The conductors shall be stranded circular,except where otherwise stated,shall comply with all the requirement for class 2 compacted stranded circular conductors of IEC60502.

Specifications

TECHNICAL PARAMETERS:

(1)Self-supporting

Phase	Phase		Phase			Approx.Overall Diameter	Max. D.C. Resistance of Conductor at 20℃
AAC+UV-XLPE	Compact Conductor		UV-XLPE Insulation
No.X No.Cross Section of Cores	No.of Al Wires	Overall Diameter	Normal Thickness	Min.	Diameter
No. X mm2	-	mm	mm	mm	mm	mm	ohm/km
1 X 10	7	4.05	1.0	0.8	6.05	6.05	3.08
1 X 16	7	4.8	1.2	0.98	7.2	7.20	1.91
1 X 25	7	6	1.2	0.98	8.4	8.40	1.20
1 X 35	7	7.0	1.4	1.16	9.8	9.80	0.868
1 X 50	7	8.3	1.4	1.16	11.1	11.10	0.641
1 X 70	19	9.8	1.4	1.16	12.6	12.60	0.443
1 X 95	19	11.6	1.6	1.34	14.8	14.80	0.320
1 X 120	19	13	1.6	1.34	16.2	16.20	0.253
1 X 150	19	14.6	1.8	1.52	18.2	18.20	0.206
1 X 185	36	16.2	2.0	1.70	20.2	20.20	0.164
1 X 240	36	18.4	2.2	1.88	22.8	22.80	0.125
2 X 10	7	4.05	1.0	0.8	6.05	12.10	3.08
2 X 16	7	4.8	1.2	0.98	7.2	14.40	1.91
2 X 25	7	6	1.2	0.98	8.4	16.80	1.20
2 X 35	7	7.0	1.4	1.16	9.8	19.60	0.868
2 X 50	7	8.3	1.4	1.16	11.1	22.20	0.641
2 X 70	19	9.8	1.4	1.16	12.6	25.20	0.443
2 X 95	19	11.6	1.6	1.34	14.8	29.60	0.320
2 X 120	19	13	1.6	1.34	16.2	32.40	0.253
2 X 150	19	14.6	1.8	1.52	18.2	36.40	0.206
2 X 185	36	16.2	2.0	1.70	20.2	40.40	0.164
2 X 240	36	18.4	2.2	1.88	22.8	45.60	0.125
3 X 10	7	4.05	1.0	0.8	6.05	13.07	3.08
3 X 16	7	4.8	1.2	0.98	7.2	15.55	1.91
3 X 25	7	6	1.2	0.98	8.4	18.14	1.20
3 X 35	7	7.0	1.4	1.16	9.8	21.17	0.868
3 X 50	7	8.3	1.4	1.16	11.1	23.98	0.641
3 X 70	19	9.8	1.4	1.16	12.6	27.22	0.443
3 X 95	19	11.6	1.6	1.34	14.8	31.97	0.320
3 X 120	19	13	1.6	1.34	16.2	34.99	0.253
3 X 150	19	14.6	1.8	1.52	18.2	39.31	0.206
3 X 185	36	16.2	2.0	1.70	20.2	43.63	0.164
3 X 240	36	18.4	2.2	1.88	22.8	49.25	0.125
4 X 10	7	4.05	1.0	0.8	6.05	14.64	3.08
4 X 16	7	4.8	1.2	0.98	7.2	17.42	1.91
4 X 25	7	6	1.2	0.98	8.4	20.33	1.20
4 X 35	7	7.0	1.4	1.16	9.8	23.72	0.868
4 X 50	7	8.3	1.4	1.16	11.1	26.86	0.641
4 X 70	19	9.8	1.4	1.16	12.6	30.49	0.443
4 X 95	19	11.6	1.6	1.34	14.8	35.82	0.320
4 X 120	19	13	1.6	1.34	16.2	39.20	0.253
4 X 150	19	14.6	1.8	1.52	18.2	44.04	0.206
4 X 185	36	16.2	2.0	1.70	20.2	48.88	0.164
4 X 240	36	18.4	2.2	1.88	22.8	55.18	0.125

(2) Phase + Neutral

Phase	Neutral	Phase				Neutral	Approx.Overall Diameter	Max. D.C. Resistance of Conductor at 20℃
AAC+UV-XLPE	AAAC	Compact Conductor		UV-XLPE Insulation		Conductor
								Phase	Neutral
No.X No.Cross Section of Cores	No.X N.Cross Section of Cores	No.of Al.Wire	Overall Dia.	No.Thickness	Min.	No./Dia. of Al Alloy Wire
No. X mm2	No. X mm2	-	mm	mm	Min.	No./mm	mm	ohm/km	ohm/km
1 X 16	1 X 16	7	4.8	1.2	0.98	7/1.70	12.30	1.91	2.217
1 X 25	1 X 25	7	6	1.2	0.98	7/2.10	14.70	1.20	1.393
1 X 35	1 X 35	7	7.0	1.4	1.16	7/2.50	17.30	0.868	1.007
1 X 50	1 X 50	7	8.3	1.4	1.16	7/3.00	20.10	0.641	0.744
1 X 70	1 X 70	19	9.8	1.4	1.16	7/3.50	23.10	0.443	0.514
1 X 95	1 X 95	19	11.6	1.6	1.34	19/2.50	27.30	0.320	0.371
1 X 120	1 X 120	19	13	1.6	1.34	19/2.80	30.20	0.253	0.294
1 X 150	1 X 150	19	14.6	1.8	1.52	37/2.25	33.95	0.206	0.239
1 X 185	1 X 185	36	16.2	2.0	1.70	37/2.50	37.70	0.164	0.190
1 X 240	1 X 240	36	18.4	2.2	1.88	61/2.25	43.05	0.125	0.145
2 X 16	1 X 16	7	4.8	1.2	0.98	7/1.70	14.04	1.91	2.217
2 X 25	1 X 25	7	6	1.2	0.98	7/2.10	16.63	1.20	1.393
2 X 35	1 X 35	7	7.0	1.4	1.16	7/2.50	19.51	0.868	1.007
2 X 50	1 X 50	7	8.3	1.4	1.16	7/3.00	22.46	0.641	0.744
2 X 70	1 X 70	19	9.8	1.4	1.16	7/3.50	25.70	0.443	0.514
2 X 95	1 X 95	19	11.6	1.6	1.34	19/2.50	30.31	0.320	0.371
2 X 120	1 X 120	19	13	1.6	1.34	19/2.80	33.41	0.253	0.294
2 X 150	1 X 150	19	14.6	1.8	1.52	37/2.25	37.55	0.206	0.239
2 X 185	1 X 185	36	16.2	2.0	1.70	37/2.50	41.69	0.164	0.190
2 X 240	1 X 240	36	18.4	2.2	1.88	61/2.25	47.41	0.125	0.145
3 X 16	1 X 16	7	4.8	1.2	0.98	7/1.70	16.15	1.91	2.217
3 X 25	1 X 25	7	6	1.2	0.98	7/2.10	19.06	1.20	1.393
3 X 35	1 X 35	7	7.0	1.4	1.16	7/2.50	22.32	0.868	1.007
3 X 50	1 X 50	7	8.3	1.4	1.16	7/3.00	25.59	0.641	0.744
3 X 70	1 X 70	19	9.8	1.4	1.16	7/3.50	29.22	0.443	0.514
3 X 95	1 X 95	19	11.6	1.6	1.34	19/2.50	34.42	0.320	0.371
3 X 120	1 X 120	19	13	1.6	1.34	19/2.80	37.87	0.253	0.294
3 X 150	1 X 150	19	14.6	1.8	1.52	37/2.25	42.56	0.206	0.239
3 X 185	1 X 185	36	16.2	2.0	1.70	37/2.50	47.25	0.164	0.190
3 X 240	1 X 240	36	18.4	2.2	1.88	61/2.25	53.63	0.125	0.145

(3) Phase + Neutral + Service Connection

Phase	Neutral	Service Connection	Phase			Neutral		Service Connection			Approx.Overall Diameter of Bundled Cable
AAC+UV-XLPE	AAAC+UV-XLPE	AAC+UV-XLPE	Conductor		UV-XLPE	Conductor	UV-XLPE	Compact Conductor		UV-XLPE
No.X Normal Cross Section of Cores	No.X Normal Cross Section of Cores	No.X Normal Cross Section of Cores	No. of Al. Wire	Overall Dia.	Normal Thickness	No./Dia. of Al. Wire	Normal Thickness	No. of Al. Wire	Overall Dia.	Normal Thickness
No. X mm2	No. X mm2	No. X mm2	-	mm	mm	mm	mm	No./mm	mm	mm	mm
3 X 16	1 X 50	1 X 16	7	4.8	1.2	7/3.0	1.4	7	4.8	1.2	26.2
3 X 25	1 X 50	1 X 16	7	6	1.2	7/3.0	1.4	7	4.8	1.2	28.6
3 X 35	1 X 50	1 X 16	7	7.0	1.4	7/3.0	1.4	7	4.8	1.2	31.4
3 X 50	1 X 50	1 X 16	7	8.3	1.4	7/3.0	1.4	7	4.8	1.2	34
3 X 70	1 X 50	1 X 16	19	9.8	1.4	7/3.0	1.4	7	4.8	1.2	37
3 X 95	1 X 50	1 X 16	19	11.6	1.6	7/3.0	1.4	7	4.8	1.2	41.4
3 X 120	1 X 50	1 X 16	19	13	1.6	7/3.0	1.4	7	4.8	1.2	44.2
3 X 16	1 X 50	2 X 16	7	4.8	1.2	7/3.0	1.4	7	4.8	1.2	26.2
3 X 25	1 X 50	2 X 16	7	6	1.2	7/3.0	1.4	7	4.8	1.2	28.6
3 X 35	1 X 50	2 X 16	7	7.0	1.4	7/3.0	1.4	7	4.8	1.2	31.4
3 X 50	1 X 50	2 X 16	7	8.3	1.4	7/3.0	1.4	7	4.8	1.2	34
3 X 70	1 X 50	2 X 16	19	9.8	1.4	7/3.0	1.4	7	4.8	1.2	37
3 X 95	1 X 50	2 X 16	19	11.6	1.6	7/3.0	1.4	7	4.8	1.2	41.4
3 X 120	1 X 50	2 X 16	19	13	1.6	7/3.0	1.4	7	4.8	1.2	44.2
