The quadruplex cables are suitable for use as drop cable from a pole-mounted transformer,to the service entrance of a structure,or as secondary distribution between poles.The cables should be limited to the voltages of 600 volts or less (phase to phase) at conductor temperatures not to exceed 75°C for polyethylene insulation conductors or 90°C for crosslinked polyethylene(XLPE) insulated conductors.

STANDARD

ASTM B230, B231, B232,B399,B498, ICEA S-76-474 Standard

CONSTRUCTION

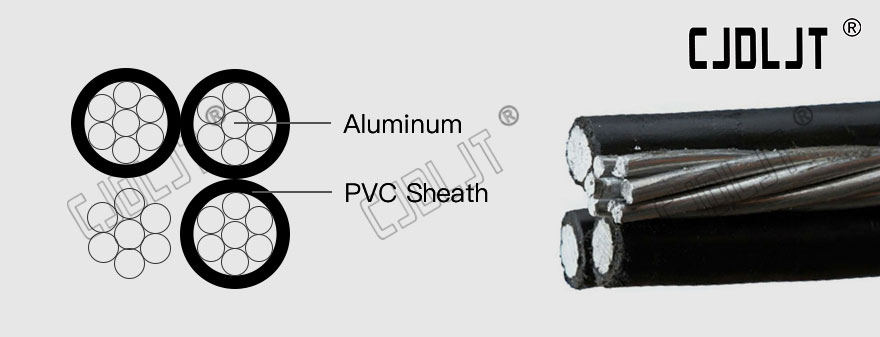

The phase conductors are concentrically stranded compressed 1350-H19 aluminum and insulated polyethylene or crosslinked polyethylene(XLPE), The neutral messengers are concentrically stranded AAC, ACSR, or 6201 aluminum alloy.The conductors are manufactured with ridges for phase identification(one conductor with one ridge,one conductor with two ridges ,one conductor is plain).

Specifications

Code Name	Phase Conductor			Bare Neutral		Approx.Weight		Code Name	Phase Conductor			Bare Neutral		Approx. Weight
	Size	Stranding	Insulation Thickness	Size	Stranding	XLPE	PE		Size	Stranding	Insulation Thickness	Size	Stranding	XLPE	PE
	AWG	-	mil	AWG	-	lbs/1000ft			AWG	-	mil	AWG	-	lbs/1000ft
6201 Alloy Neutral Messenger								AAC Neutral Messenger
Bay	6	Solid	45	6	7	145	140.0	Clydesdale	4	Solid	45	4	7	208	201.8
French Coach	6	7/w	45	6	7	155	144.3	Pinto	4	7/w	45	4	7	223	207.9
German Coach	4	Solid	45	4	7	214	208.3	Mustang	2	7/w	45	2	7	333	312.6
Arabian	4	7/w	45	4	7	229	214.4	Criollo	1/0	19/w	60	1/0	7	529	504.5
Belgian	2	7/w	45	2	7	344	323.1	Percheron	2/0	19/w	60	2/0	7	649	620.5
Shetland	1/0	19/w	60	1/0	7	546	521.1	Hanoverian	3/0	19/w	60	3/0	19	799	765.6
Thoroughbred	2/0	19/w	60	2/0	7	670	641.5	Oldenburg	4/0	19/w	60	4/0	19	986	946.7
Trotter	3/0	19/w	60	3/0	7	825	791.8	Lippizaner	336.4	19/w	60	336.4	19	1,546	1,519.2
Walking	4/0	19/w	60	4/0	7	1019	979.7
ACSR Neutral Messenger
Morochuca	6	Solid	45	6	6/1	152	147.4	Grullo	2/0	19/w	60	2/0	6/1	707	678.7
Chola	6	7/w	45	6	6/1	162	151.7	Suffolk	3/0	19/w	60	3/0	6/1	872	838.9
Morgan	4	Solid	45	4	6/1	226	220	Appaloosa	4/0	19/w	60	4/0	6/1	1079	1039.2
Hackney	4	7/w	45	4	6/1	241	226.1	Bronco	336.4	19/w	60	336.4	18/1	1613	1568.2
Palomino	2	7/w	45	2	6/1	362	342.6	Gelding	336.4	19/w	60	4/0	6/1	1548	1494.3
Costena	1/0	19/w	60	1/0	6/1	575	550.6

(2)Conductor temperature of 90°C for XLP, 75°C for poly; ambient temperatures of 40°C; emissivity 0.9; 2ft./sec/wind in sun.
