1. 0.6/1kV Overhead Cable

2. Aluminum conductor

3. XLPE Insulation

4. Phase conductor+ neutral Conductor

5. IEC BS NFC Standard

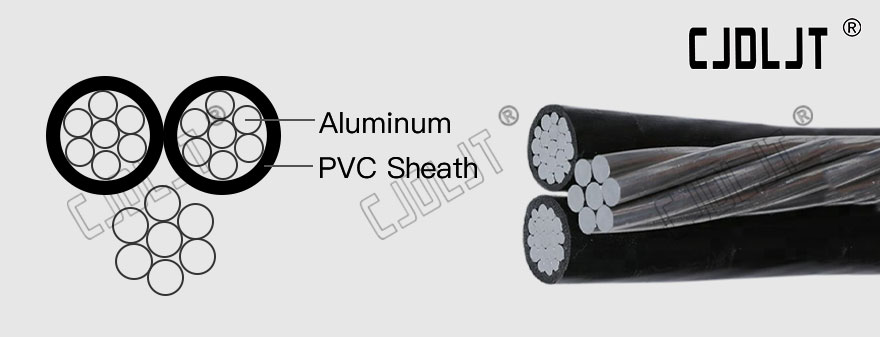

LV Aerial Bundled Conductor (ABC) Cables

APPLICATION OF TRIPELX ABC CABLE

Aerial Bundle Cable (ABC cable) is a very innovative concept for overhead powerdistribution as compared to the conventional bare conductor overhead cable.

PROPERTY SYSTEM.

Electrical Properties

rated Voltage0.6/1kV
Test Voltage	4VeffkV
minimum laying Temperature	-20°C
operating Temperature	-40°C~ +90°C
maximum Short-circuit Temperature	250°C
maximum Conductor Temperature	80°C
minimum Bending radius	18×OD

It provides higher level of safety and reliability, lower power losses and ultimate system economy by reducing installation, maintenance and operative cost.
LV Aerial Bundle Cables are designed to supply 600/1000 volt aerial service for temporary service at construction sites, as a service drop (power pole to service entrance),as a secondary cable (pole to pole) or street lighting.
This over-head cable providesreinforced insulation acc. IEC 61140 and fulfill therefore Class II acc. IEC 61140.
It is not flame retardant. But this could be if requested change to a flame retardant cable.

STANDARD OF TRIPELX ABC CABLE

Basic design to BS 7870 (IEC 61089) / HD 626 S1 / NFC 33-209 / AS/NZS 3560-1 standards
Construction of tripelx abc cable
Conductor: Aluminium conductor, round stranded compressed (RM).
insulation: XPLE compound, UV-resistant.
Core identification: 1, 2 resp. 3 raised longitudinal ribs on the surface of the cores.
The surface of the neutral core should have at least 12 ribs for cross-sections up to 50 mm²
and a minimum of 16 ribs for cores above 50 mm². In the case of five core bundles the
surface of the protective core should be smooth.

Specifications

CONSTRUCTION PARAMETERS OF TRIPELX ABC CABLE TNB SPECIFICATION (IEC 61089)

number of cores xNominal cross Section	overall diameter	weight	Maxinum conductor Resistance	Minimun breaking Load	current Rating
No.xmm2	mm	kg/km	Ω/Km	KN	A
1x16+1x25 RM	15.3	160	1,910	2,5	72
3x16+1x25 RM	19	290	1,200	4,0	107
3x25+1x25 RM	23.2	400	0,868	5,5	132
3x35+1x25 RM	25.6	500	0,641	8,0	165
3x50+1x35 RM	30	680	0,443	10,7	205
3x70+1x50 RM	34.9	920	0,320	13,7	240
3x95+1x70 RM	40.6	1270	0,253	18,6	290
3x120+1x70 RM	44.1	1510	0,206	23,2	334
3x150+1x95 RM	49.2	1870	0,164	28,7	389
3x185+1x120 RM	54.9	2340	0,125	37,2	467
3x25+1x25+1x16 RM	23.2	470	1,910	2,5	72
3x35+1x25+1x16 RM	25.6	560	1,200	4,0	107
3x50+1x35+1x16 RM	30	740	0,868	5,5	132
3x70+1x50+1x16 RM	34.9	980	0,641	8,0	165
3x95+1x70+1x16 RM	40.6	1330	0,443	10,7	205
3x120+1x70+1x16 RM	44.1	1580	0,320	13,7	240
3x150+1x95+1x16 RM	49.2	1940	0,206	23,2	334
3x185+1x120+1x16 RM	54.9	2410	1,910	2,5	72
