Product Details

Application

It is suitable for power plant, daily electrical applicances, instruments and telecommuication equiment with rated voltage of 450/750V and below.

Operation Characteristic

1.Rated voltage:450/750V.

2.Long-term permission working temperature of cable conductor is 70ºC

3.The minimum allowable bending radius of cable is 6 times of outer diameter of thecable.

Standard

IEC 60227
EN 50525

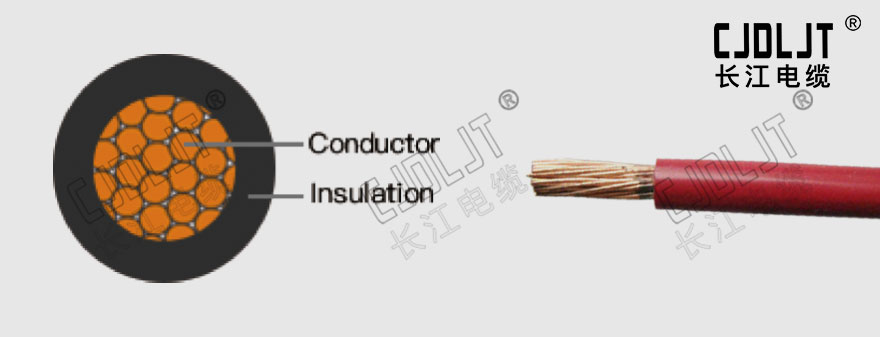

Cable Structure

Conducto: Copper (Class5 according to IEC 60228)

Insulation: PVC

Specifications

Nominal cross sectional area	Thickness of insulation	Nominal diameter		Min insulation resiatant at rated temperature
Nominal cross sectional area	Thickness of insulation	Lower limit	Upper limit	Min insulation resiatant at rated temperature
mm2	mm	mm	mm	MΩ·km
1.5	0.7	2.8	3.4	0.01
2.5	0.8	3.4	4.1	0.0095
4	0.8	3.9	4.8	0.0078
6	0.8	4.4	5.3	0.0068
10	1	5.7	6.8	0.0065
16	1	6.7	8.1	0.0053
25	1.2	8.4	10.2	0.005
35	1.2	9.7	11.7	0.0043
50	1.4	11.5	13.9	0.0042
70	1.4	13.2	16	0.0036
95	1.6	15.1	18.2	0.0036
120	1.6	16.7	20.2	0.0032
150	1.8	18.6	22.5	0.0032
185	2	20.6	24.9	0.0032
240	2.2	23.5	28.4	0.0031

PROJECT MANAGEMENT: We can manage all of your low voltage cable Project requirements regardless of size or value. Throughout our 20 years of trading we have managed many projects.
Should you have any questions regarding your project please contact a member of our sales team who will be happy to help.

CJDL CABLES: CJDL Cable Company is the supplier of bespoke cable and temporary power cable. We can supply tailor made power leads to your exact any cable size, in any length. We have the enough stock and range of low voltage cables including all sizes and core conﬁgurations 0.3mm2 up to 6mm2. Additionally we hold the full range of flexible control both braided and unbraided up to 6mm2. Any of these cables can be incorporated into customised leads.

STOCK HOLDING: Our range of electrical cables include power, fire performance, shielded,, control and general wiring cables. All of our cables are manufactured to china, European and International standards where applicable.
