0.6/1KV NYY cable

Single croe and Multi Core Cable.Soild or Stranded Plain copper ,PVC insulated and PVC sheathed.

Product Details

APPLICATION:

NYY cable for fixed installation. Can be used indoors, outdoors, underground, in concrete and in water.PVC panel wiring for use in the switch control, relay and instrumentation panels of power switchgear and for purposes such as internal connectors in rectifier equipment, motor starters and controllers.

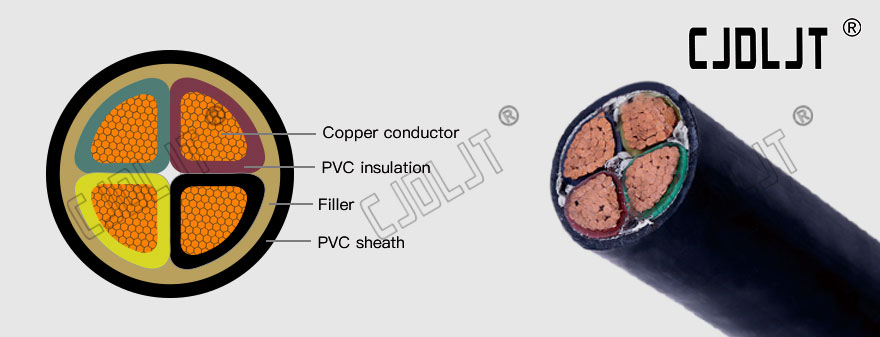

CONSTRUCTION

Conductor:Copper
Nominal Cross-sectional Areas: 6 mm2, 10 mm2 ,16 mm2,25 mm2, 35 mm2, 50 mm2 ,70 mm2,95 mm2,120 mm2,150 mm2,185 mm2,240 mm2,300 mm2,400 mm2,500 mm2
Insulation:PVC (Polyvinyl Chloride)
Characteristics Voltage Rating(UO/U):600/1000V
Temperature Rating:
Fixed: -15°C to +70°C
Flexed: -5°C to +50°C
Sheath Color:Red Black Blue Orange Yellow White Green Grey Brown Violet Pink

CABLE STANDARDS:

VDE 0276

Specifications

TECHNICAL CHARACTERISTICS:

Wire Gage NO.X Cross Section Area(mm²) Nominal Outside Diameter(mm) Nominal Copper Weight(kg/km) Nominal Cable Weight(kg/km)
10 1x6re 10.0 58.0 136.0
8 1x10re 11.0 96.0 182.0
6 1x16re 12.0 154.0 252.0
4 1x25rm 13.0 240.0 365.0
2 1x35rm 14.0 336.0 480.0
1 1x50rm 16.0 480.0 620.0
2/0 1x70rm 17.0 672.0 840.0
3/0 1x95rm 19.0 912.0 1100.0
4/0 1x120rm 21.0 1152.0 1320.0
300mcm 1x150rm 23.0 1440.0 1610.0
350mcm 1x185rm 25.0 1776.0 1.980.0
500mcm 1x240rm 28.0 2304.0 2550.0
750mcm 1x300rm 30.0 2880.0 3200.0
- 1x400rm 34.0 3840.0 4000.0
- 1x500rm 38.0 4800.0 5100.0
