Product Details

Application
This power cables are used for electricity supply in low voltage installation system. They are well adapted to underground use in industrial applications with an additional mechanical protection.These cables can be fixed on cable trays, within conduits or fixed on walls.
Standard
GB/T 12706
IEC 60502

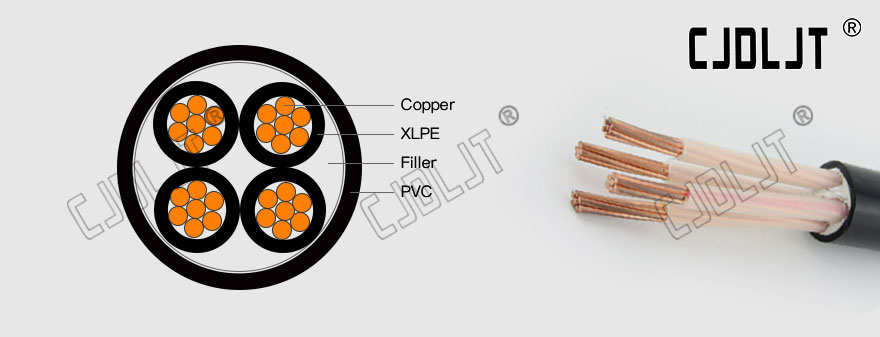

Structure
Conductor：Copper
Insulation：XLPE
Sheath：PVC
Using characteristic
Rated voltage: 0.6/1 KV
Cable Working temperature not higher than 90℃.
Short (the longest duration of no more than 5s) of the conductor temperature does not exceed 250 ℃.
Cabling ambient temperature should not be below 0 ℃, or need preheated.
Installation bending radius
A) non-armored cable layer shall be not less than 6 times the cable diameter;
B) with armor or copper screened cable, not less than 12 times the cable diameter;
C) with a shield layer flexible cable, not less than 6 times the cable diameter.

Specifications

Nominal cross sectional area of conductor	Thickness of Insulation	Approximate Overall Diameter	Max DC resistance of conductor at 20℃
No×mm2	mm	mm	Ω/km
3×4	0.7	10.55	4.61
3×6	0.7	11.71	3.08
3×10	0.7	13.56	1.83
3×16	0.7	15.64	1.15
3×25	0.9	19.10	0.727
3×35	0.9	21.65	0.524
4×4	0.7	11.58	4.61
4×6	0.7	12.88	3.08
4×10	0.7	14.95	1.83
4×16	0.7	17.28	1.15
4×25	0.9	21.16	0.727
4×35	0.9	24.01	0.524
5×4	0.7	12.69	4.61
5×6	0.7	14.13	3.08
5×10	0.7	16.45	1.83
5×16	0.7	19.05	1.15

Service

PROJECT MANAGEMENT: We can manage all of your low voltage cable Project requirements regardless of size or value. Throughout our 20 years of trading we have managed many projects.
Should you have any questions regarding your project please contact a member of our sales team who will be happy to help.

CJDL CABLES: CJDL Cable Company is the supplier of bespoke cable and temporary power cable. We can supply tailor made power leads to your exact any cable size, in any length. We have the enough stock and range of low voltage cables including all sizes and core conﬁgurations 0.3mm2 up to 6mm2. Additionally we hold the full range of flexible control both braided and unbraided up to 6mm2. Any of these cables can be incorporated into customised leads.

STOCK HOLDING: Our range of electrical cables include power, fire performance, shielded,, control and general wiring cables. All of our cables are manufactured to china, European and International standards where applicable.
