Product Details

Application

Distribution power cable for static application, mostly in ground, but also in water, within facilities, in cable canals, in concrete. Used in electric power plants, transformer stations, industrial plants, metropolitan networks and other electric plants. Applied in conditions requiring protection against heavier mechanical damages, but where cables are not exposed to heavier tensile strain.

Standard

HRN HD 603 S1
IEC 60502-1
DIN VDE 0276 part 603
cables with 6 and more conductors:
HRN HD 627 S1
DIN VDE 027

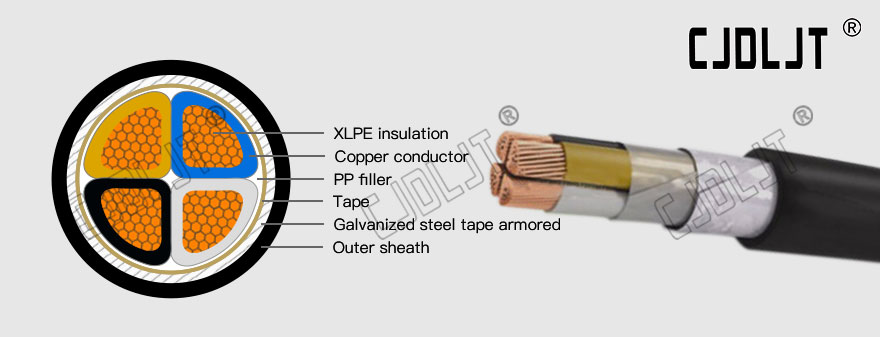

Construction

Conductor:Cu, class 1 or 2 acc. to HRN HD 383 / IEC 60228 / DIN VDE 0295
class 1:solid, round (RE)
class 2:multi wire stranded, round (RM) or sector (SM), multi wire exceeding 50 mm² are compacted
Insulation:PVC compound, concentrically stranded cores, colour marked acc. to HRN HD 308 S2 / VDE 0293-308, with or without protective yellow-green conductor
Filler:spouted elastomer or plastomer compound or wrapped thermoplastic tapes
Armour:dtwo galvanized steel tapes
Sheath:PVC compound
sheath colour:black

Technical data

Temperature range:
during installation:-5 °C up to +50 °C
fixed installed:-30 °C up to +70 °C
at short circuit of max. 5 s:up to 160 °C
Nominal voltage:Uο/U = 0,6/1 kV
Test voltage:4 kV
Maximal tensile strength:50 N/mm²
Behaviour in fire:IEC 60332-1
Minimal inner bending radius:
single core:15D
multi core:12D
Special version upon request
Cross sectional area customized
Aluminum conductor required

Advantages

Excellent electric and mechanical characteristics
Best Resistance chemical corrosion and heat-ageing,environment stress and flame-retardant
Simple in structure,Convenient to use
Reduce costs

Specifications

Dimensions and Weights

number of cores x conductor cross-section	Construction	Construction of individual conductor	Insulation thickness	Sheath thickness	External diameter	Cable weight
N x mm²		N x mm	mm	mm	mm	Kg/km
Power NYBY-J, NYBY-O
2 x 4	RE	1 x 2,2	1	1,8	15,3	420
2 x 6	RE	1 x 2,7	1	1,8	16,3	493
2 x 10	RM	7 x 1,34	1	1,8	18,7	668
2 x 16	RM	7 x 1,70	1	1,8	20,9	873
3 x 4	RE	1 x 2,2	1	1,8	16	476
3 x 6	RE	1 x 2,7	1	1,8	17,1	569
3 x 10	RM	7 x 1,34	1	1,8	19,7	783
3 x 16	RM	7 x 1,70	1	1,8	22,1	1044
3 x 16+10	RM/RE	7 x 1,7/7 x 1,3	1,0 / 1,0	1,8	23,2	1163
3 x 25+16	RM/RM	7 x 2,2/7 x 1,7	1,2 / 1,0	1,8	26,2	1641
3 x 35+16	SM/RM	7 x 2,5/7 x 1,7	1,2 / 1,0	1,8	28,2	1978
3 x 50+25	SM/RM	7 x 3,/7 x 2,2	1,4 / 1,2	1,9	31,9	2606
3 x 70+35	SM/RM	13 x 2,7/7 x 2,5	1,4 / 1,2	2	35,8	3471
3 x 95+50	SM/RM	17 x 2,7/7 x 3	1,6 / 1,4	2,2	42,6	4963
4 x 1,5	RE	1 x 1,37	0,8	1,8	14,2	357
4 x 2,5	RE	1 x 1,74	0,8	1,8	15,1	424
4 x 4	RE	1 x 2,2	1	1,8	17,1	555
4 x 6	RE	1 x 2,7	1	1,8	18,3	670
4 x 10	RM	7 x 1,34	1	1,8	21,2	936
4 x 16	RM	7 x 1,70	1	1,8	23,8	1265
4 x 25	RM	7 x 2,20	1,2	1,8	27	1793
5 x 4	RE	1 x 2,2	1	1,8	18,3	640
5 x 16	RM	7 x 1,70	1	1,8	25,8	1472
5 x 50	SM	7 x 3,00	1,4	2,1	37	3498
5 x 70	SM	13 x 2,70	1,4	2,2	42,6	4956
5 x 95	SM	17 x 2,70	1,6	2,4	50	6748
5 x 120	SM	18 x 3,00	1,6	2,6	53,1	7941

NYBY-JZ, NYBY-OZ

number of cores x conductor cross-section	Construction	Construction of individual conductor	Insulation thickness	Sheath thickness	External diameter	Cable weight
N x mm²		N x mm	mm	mm	mm	Kg/km
Signalnini NYBY-JZ, NYBY-OZ
6 x 4	RE	1 x 2,2	1	1,8	21,4	800
7 x 4	RE	1 x 2,2	1	1,8	21,4	830
8 x 4	RE	1 x 2,2	1	1,8	22,6	930
10 x 4	RE	1 x 2,2	1	1,8	27,3	1125
12 x 4	RE	1 x 2,2	1	1,8	27	1190
14 x 4	RE	1 x 2,2	1	1,8	29,3	1390
16 x 4	RE	1 x 2,2	1	2	32	1850
19 x 4	RE	1 x 2,2	1	2	33,4	2055
6 x 6	RE	1 x 2,7	1	1,8	22,5	950
7 x 6	RE	1 x 2,7	1	1,8	22,5	1000
8 x 6	RE	1 x 2,7	1	1,8	24	1125
10 x 6	RE	1 x 2,7	1	1,9	29,1	1350
12 x 6	RE	1 x 2,7	1	1,9	29,8	1510
14 x 6	RE	1 x 2,7	1	1,9	32,5	2015
16 x 6	RE	1 x 2,7	1	2	33,7	2740
19 x 6	RE	1 x 2,7	1	2,1	35,5	2515
