450/750V single core cable with solid conductor

It is suitable for power plant, daily electrical applicances, instruments and telecommuication equiment with rated voltage of 450/750V and below

Product Details

Application
It is suitable for power plant, daily electrical applicances, instruments and telecommuication equiment with rated voltage of 450/750V and below.

Operation Characteristic
1.Rated voltage:450/750V.
2.Long-term permission working temperature of cable conductor is 70ºC
3.The minimum allowable bending radius of cable is 6 times of outer diameter of thecable.

Standard
IEC 60227
EN 50525

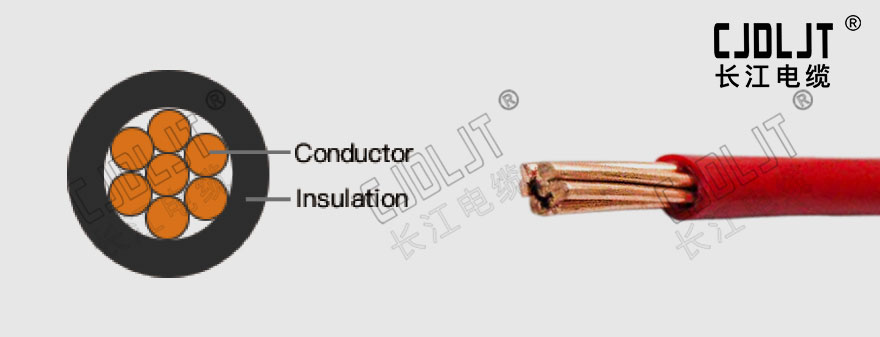

Cable Structure
Conductor: Copper (Class1 or Class2 according to IEC 60228)
Insulation: PVC

Specifications

H07V-R
Core*Nominal cross sectional area Thickness of insulation Thickness of sheath Nominal diameter Min insulation resiatant at rated temperature
Lower limit Upper limit
mm2 mm mm mm mm MΩ·km
1.5 2 0.7 2.7 3.3 0.01
2.5 2 0.8 3.3 4 0.0099
4 2 0.8 3.8 4.6 0.0082
6 2 0.8 4.3 5.2 0.007
10 2 1 5.6 6.7 0.0067
16 2 1 6.4 7.8 0.0056
25 2 1.2 8.1 9.7 0.0053
35 2 1.2 9 10.9 0.0046
50 2 1.4 10.6 12.8 0.0046
70 2 1.4 12.1 14.6 0.004
95 2 1.6 14.1 17.1 0.0039
120 2 1.6 15.6 18.8 0.0035
150 2 1.6 17.3 20.9 0.0035
