Product Details

Application

It is suitable for power plant, daily electrical applicances, instruments and telecommuication equiment with rated voltage of 300/500V and below.

Operation Characteristic

1.Rated voltage:300/500V.

2.Long-term permission working temperature of cable conductor is 70℃

3.The minimum allowable bending radius of cable is 6 times of outer diameter of thecable.

Standard

IEC 60227
EN 50525

Cable Structure

Conductor: Copper (according to IEC 60228)

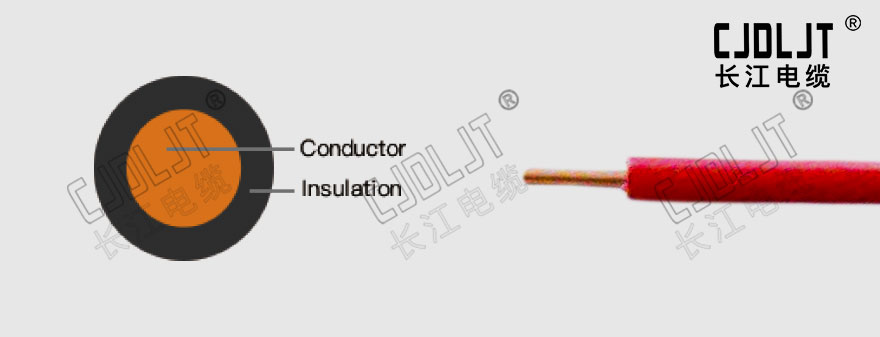

H05V-U/60227IEC05-Class1

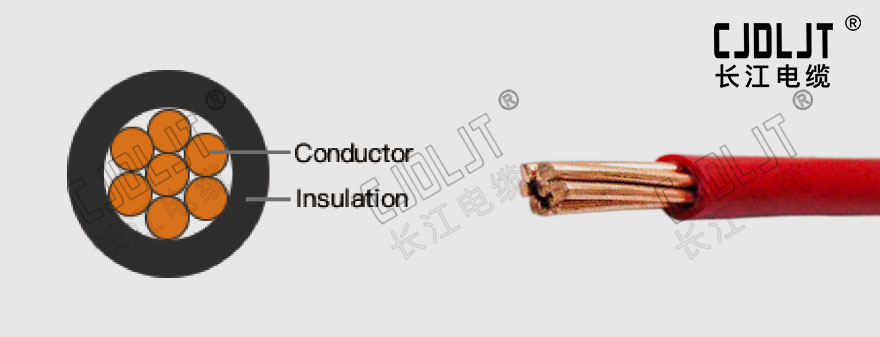

H05V-R-Class2

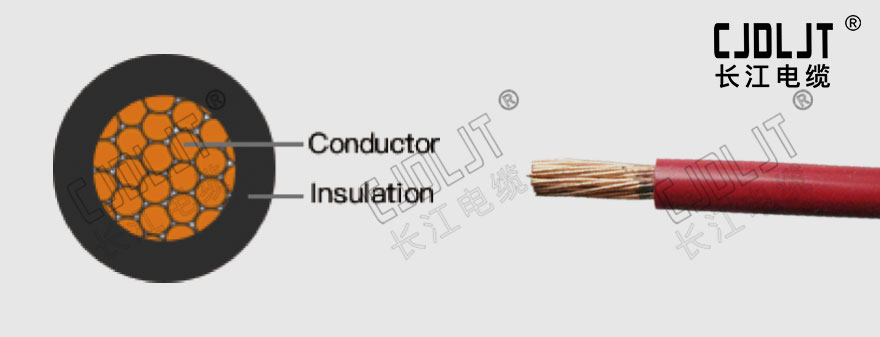

H05V-K/60227IEC06-Class5

Insulation: PVC

Specifications

H05V-U
Nominal cross sectional area	Class of conductor	Thickness of insulation	Nominal diameter		Min insulation resiatant at rated temperature
Nominal cross sectional area	Class of conductor	Thickness of insulation	Lower limit	Upper limit	Min insulation resiatant at rated temperature
mm2	class	mm	mm	mm	MΩ·km
0.5	1	0.6	1.9	2.3	0.014
0.75	1	0.6	2.1	2.5	0.013
1	1	0.6	2.2	2.7	0.011

H05V-R
Nominal cross sectional area	Class of conductor	Thickness of insulation	Nominal diameter		Min insulation resiatant at rated temperature
Nominal cross sectional area	Class of conductor	Thickness of insulation	Lower limit	Upper limit	Min insulation resiatant at rated temperature
mm2	class	mm	mm	mm	MΩ·km
0.5	2	0.6	2.0	2.4	0.014
0.75	2	0.6	2.2	2.6	0.012
1	2	0.6	2.3	2.8	0.011

H05V-K
Nominal cross sectional area	Class of conductor	Thickness of insulation	Nominal diameter		Min insulation resiatant at rated temperature
Nominal cross sectional area	Class of conductor	Thickness of insulation	Lower limit	Upper limit	Min insulation resiatant at rated temperature
mm2	class	mm	mm	mm	MΩ·km
0.5	5	0.6	2.1	2.5	0.013
0.75	5	0.6	2.2	2.7	0.011
1	5	0.6	2.4	2.8	0.01
