These cables are used for electricity supply in low voltage installation system. They are suitable for installation in indoors and outdoors , in cable ducts , under ground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage.

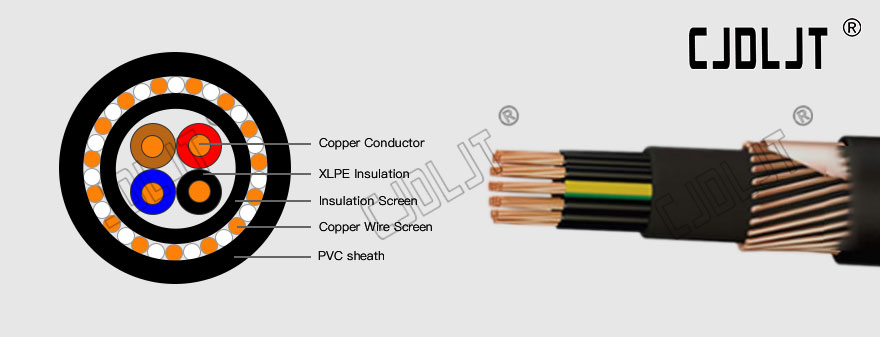

Conductor: Solid or stranded copper (1C,2C,3C,4C,5C or Multi-core)
Insulation: Cross-linked polyethylene (XLPE) or Polyvinyl chloride (PVC)
Filler: Polypropylene filament with lapped binding tape
Binder: Binding tape
Inner sheath: Polyvinyl chloride (PVC)
Sheath: Polyvinyl chloride (PVC)
Characteristics voltage rating: (UO/U):600/1000V
Testing voltage:4000V
Temperature Rating:
Fixed: -5°C to +70°C
Flexed: -30°C to +70°C
Short circuited temperature:+250ºC
Insulation resistance:20 MΩ x km
Wire Gage | NO.X Cross Section Area(mm²) | Insulation Thickness(mm) | Jacket Thickness(mm) | Nominal Outside Diameter(mm) | Nominal Cable Weight(kg/km) |
---|---|---|---|---|---|
16 | 1x1.5 | 0.7 | 1.8 | 9.7 | 114 |
14 | 1x2.5 | 0.7 | 1.8 | 10.2 | 135 |
12 | 1x4 | 0.7 | 1.8 | 10.8 | 170 |
10 | 1x6 | 0.7 | 1.8 | 11.3 | 214 |
8 | 1x10 | 0.7 | 1.8 | 12.4 | 304 |
6 | 1x16 | 0.7 | 1.8 | 13.8 | 431 |
4 | 1x25 | 0.9 | 1.8 | 15.5 | 548 |
2 | 1x35 | 0.9 | 1.8 | 16.6 | 650 |
1 | 1x50 | 1 | 1.8 | 18.8 | 892 |
2/0 | 1x70 | 1.1 | 1.8 | 21.0 | 1207 |
3/0 | 1x95 | 1.1 | 1.8 | 23.5 | 1600 |
4/0 | 1x120 | 1.2 | 1.8 | 26.0 | 2045 |
300mcm | 1x150 | 1.4 | 1.8 | 28.0 | 2320 |
350mcm | 1x185 | 1.6 | 1.8 | 30.5 | 2942 |
500mcm | 1x240 | 1.7 | 1.9 | 34.0 | 3761 |
750mcm | 1x300 | 1.8 | 2.1 | 37.0 | 4591 |
- | 1x400 | 2 | 2 | 41.5 | 5830 |
- | 1x500 | 2.2 | 2.3 | 46.0 | 7450 |
- | 1x630 | 2.4 | 2.5 | 52.0 | 9561 |
- | 1x800 | 0.7 | 1.8 | 58.0 | 12290 |
