Control cable for intrinsically safe circuits
This product has low capacitance and low inductance, has excellent shielding performance and interference performance, so the explosion-proof performance is superior to general computer cable and control cable. It is suitable for circuits such as distributed systems and automatic detection and control systems with explosion-proof requirements. The transmission line for weak signals, rated voltage: 300/500V and 450/750V.
Execution standard: The enterprise standard is equivalent to BS5308-1986.
Use characteristics: cable conductor long-term allowable working temperature ≤ 70 ° C (cross-linked polyethylene ≤ 90 ° C, heat resistance 105 ° C ≤ 105 ° C); cable laying environment temperature ≥ 0 ° C; minimum bending radius when laying cables should be ≥ cable 6 times the diameter, armored and copper tape shielded cable should be ≥ 12 times the outer diameter of the cable.
Mining communication cable
This product is used in the underground for telephone communication wire, wiring and user lines.
Executive standard: MT818.14-1999
Use characteristics: cable ambient temperature is -40 ° C ~ +50; humidity is 95% at 25 ° C; cable laying temperature ≥ -10 ° C; cable bending radius MHYV ≥ 10 times cable outer diameter, the remaining models ≥ 15 Double cable outer diameter.
Mining signal cable
This product is used as a low-frequency signal transmission line in coal mine underground monitoring and control system.
Implementation standards: The enterprise standard reference uses MT818.14-1999.
Use characteristics: cable ambient temperature is -40 ° C ~ +50 ° C; humidity is 95% at 25 ° C; cable laying temperature ≥ -10 ° C; cable bending radius MPYVR and MPYV31 ≥ 10 times cable outer diameter, the rest Model ≥ 15 times cable outer diameter.

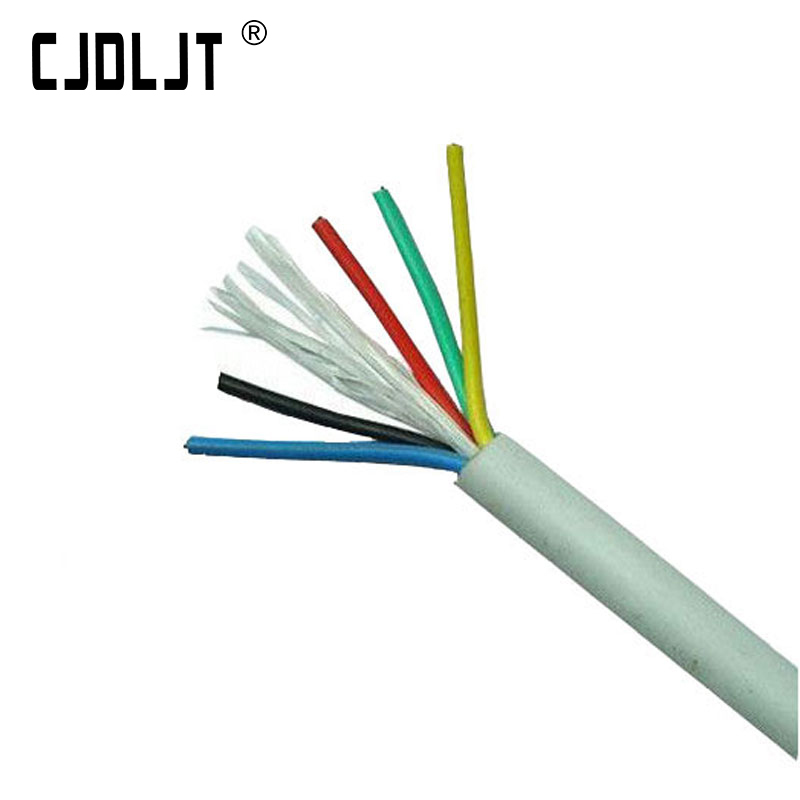

Control shielded cable
This product is used for DC and AC 50～60Hz, rated voltage 450/750V and 600/1000V and below control, signal protection and measurement lines. The insulated core is coded and the shield type is suitable for substations and power stations of 500KV and below. The power plant control circuit can prevent the system from being disturbed by the strong external electric field.
Execution standard: GB9330-1998 (refer to the use of IEC227 withstand voltage better than IEC227) - PVC insulated and sheathed control cable; enterprise standard - XLPE control cable.
Use characteristics: cable conductor long-term allowable working temperature ≤ 70 ° C (cross-linked polyethylene ≤ 90 ° C, heat resistance 105 ° C ≤ 105 ° C); cable laying environment temperature ≥ 0 ° C; minimum bending radius when laying cables should be ≥ cable 8 times the diameter, armored and copper tape shielded cable should be ≥ 12 times the outer diameter of the cable.
