Product Details

Application

This product is suitable for fixed laying in the line with AC 50Hz and rated voltage of 0.6/1kV and below for power transmission and distribution.

Operation Characteristic

1.Rated voltage:0.6/1kV.

2.Long-term permission working temperature of cable conductor is 70℃.

3.The minimum allowable bending radius of cable is 12 times of outer diameter of thecable.

Standard：IEC 60502

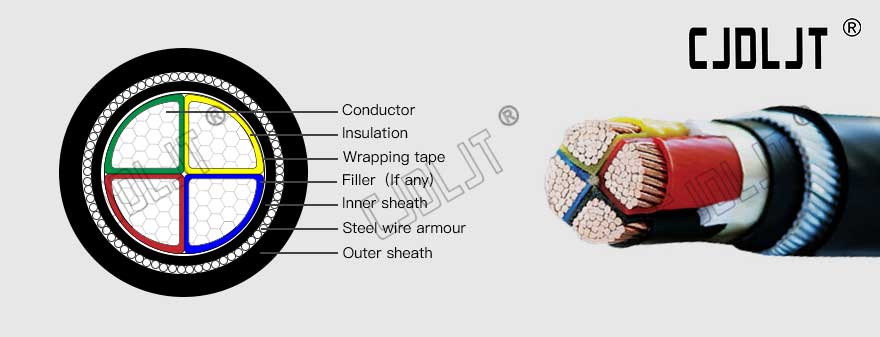

Cable Structure

Conductor:Copper

Insulation:PVC

Armour:Steel Wire Armour

Sheath:PVC

Specifications

Core*Nominal Cross sectional Area	Min No.of stranding wires	Thickness of insulation	Diameter of steel wire	Thickness of sheath	Nominal diameter	Max DC resistance of conductor at 20℃
No*mm2	No/mm	mm	mm	mm	mm	Ω/km
2*10	6	1.0	1.25	1.8	21.7	1.83
2*16	6	1.0	1.25	1.8	23.8	1.15
2*25	6	1.2	1.60	1.8	23.3	0.727
2*35	6	1.2	1.60	1.8	24.9	0.524
2*50	6	1.4	1.60	1.9	27.0	0.387
3*10	6	1.0	1.25	1.8	22.6	1.83
3*16	6	1.0	1.60	1.8	25.6	1.15
3*25	6	1.2	1.60	1.8	25.8	0.727
3*35	6	1.2	1.60	1.9	27.9	0.524
3*50	6	1.4	2.00	2.0	31.6	0.387
4*10	6	1.0	1.25	1.8	25.0	1.83
4*16	6	1.0	1.60	1.8	27.5	1.15
4*25	6	1.2	1.60	1.9	28.3	0.727
4*35	6	1.2	1.60	2.0	30.8	0.524
4*50	6	1.4	2.00	2.1	35.2	0.387
