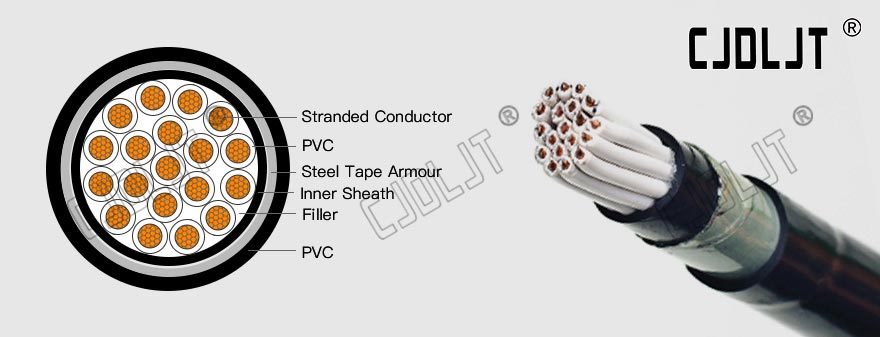

PVC insulated PVC sheathed control cable

The purpose of increase the steel belt armoured structure in the outer sheath of the cable, is increasing the mechanical strength of the cable and to improve the anti-erosion ability. It is designed for environments that are vulnerable to mechanical

Product Details

Application
increase in the cable outer sheathed structure, additional cables, mechanical strength , improved resistance to attack, is highly susceptible to mechanical damage and erosion of the area designed for wire and cable.
can be used for buried cable fixing pipe laying or ordinary wear, common ground, tunnels and the like.
installation bend radius
not less than 12 times the cable diameter.

Specifications

KVVR22 product parameters

Core Number*Section
mm²
Conductor structure                    Insulation thickness mm Steel tape armor  Sheath Thickness mm Reference Diameter mm
Maximum Resistance of Copper Conductor at 20℃
Ω/km
Minimum Insulation Resistance at 70 C
Ω/km
Layer * Thickness
Class      No./mm mm Copper core       Tinned copper
4 × 0.75 5 24 / 0.20 0.6 / 0.8 2 * 0.2 1.2 / 1.8 9.4 26.7 26 0.011
4 × 1 5 32 / 0.20 0.6 / 0.8 2 * 0.2 1.2 / 1.8 10 20 19.5 0.01
4 × 1.5 5 30 / 0.25 0.7 / 0.8 2 * 0.2 1.2 / 1.8 10.5 13.7 13.3 0.01
4 × 2.5 5 50 / 0.25 0.7 / 0.8 2 * 0.2 1.2 / 1.8 13 8.21 7.98 0.009
5 × 0.75 5 24 / 0.20 0.6 / 0.8 2 * 0.2 1.2 / 1.8 9.6 26.7 26 0.011
5 × 1 5 32 / 0.20 0.7 / 0.8 2 * 0.2 1.2 / 1.8 10.5 20 19.5 0.01
