Application
This product is suitable for fixed laying in the line with AC 50Hz and rated voltage of 0.6/1kV and below for power transmission and distribution.

Operation Characteristic
1.Rated voltage:0.6/1kV.
2.Long-term permission working temperature of cable conductor is 90℃.
3.The minimum allowable bending radius of cable is 8 times of outer diameter of thecable.

Standard：
BS 5467

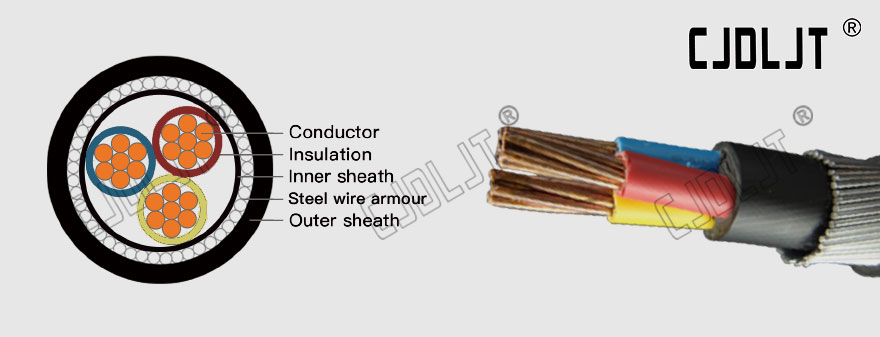

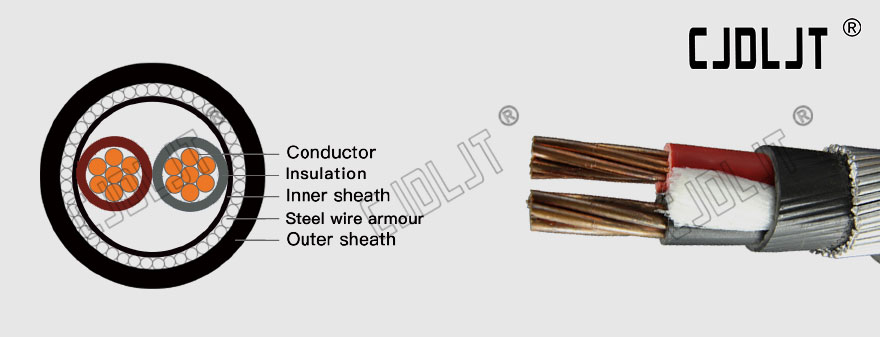

Cable Structure
Conductor:Copper
Insulation:XLPE
Inner sheath:PVC
Armour:Steel Wire Armour
Outer sheath:PVC

Specifications

Core*Nominal cross-sectional area of conductor	Thickness of insulation	Thickness of extruded bedding	Diameter of armour wire	Thickness of oversheath	Approximate overall diameter	Max DC resistance of conductor at 20℃
mm2	mm	mm	mm	mm	mm	Ω/km
3*10	0.7	0.8	1.25	1.5	19.5	1.83
3*16	0.7	0.8	1.25	1.6	21.6	1.15
3*25	0.9	1.0	1.6	1.7	26.7	0.727
3*35	0.9	1.0	1.6	1.8	29.4	0.524
4*10	0.7	0.8	1.25	1.5	21.1	1.83
4*16	0.7	0.8	1.25	1.6	23.4	1.15
4*25	0.9	1.0	1.6	1.7	28.9	0.727
4*35	0.9	1.0	1.6	1.8	31.9	0.524
4*50	1.0	1.2	2.0	2.0	36.6	0.387
5*10	0.7	0.8	1.25	1.6	22.9	1.83
5*16	0.7	1.0	1.6	1.7	26.6	1.15
5*25	0.9	1.0	1.6	1.8	31.5	0.727
5*35	0.9	1.0	1.6	1.9	34.8	0.524
27*1.5	0.6	1.0	1.6	1.7	26.7	12.1
37*1.5	0.6	1.0	1.6	1.7	29.0	12.1
19*2.5	0.7	1.0	1.6	1.7	26.6	7.41
27*2.5	0.7	1.0	1.6	1.8	30.7	7.41
37*2.5	0.7	1.0	1.6	1.8	33.8	7.41
Note：Circular or compacted circular stranded conductor(class 2)

Core*Nominal cross-sectional area of conductor	Thickness of insulation	Thickness of extruded bedding	Diameter of armour wire	Thickness of oversheath	Approximate overall diameter	Max DC resistance of conductor at 20℃
mm2	mm	mm	mm	mm	mm	Ω/km
3*25	0.9	1.0	1.6	1.7	23.6	0.727
3*35	0.9	1.0	1.6	1.8	25.7	0.524
3*50	1.0	1.0	1.6	1.8	28.5	0.387
3*70	1.1	1.0	1.6	1.9	32.2	0.268
4*25	0.9	1.0	1.6	1.7	26.1	0.727
4*35	0.9	1.0	1.6	1.8	28.6	0.524
4*50	1.0	1.0	1.6	1.9	32	0.387
4*70	1.1	1.2	2.0	2.1	37.7	0.268
Note：Shaped stranded conductor(class 2)
