4 cores LSZH sheath SWA Cable BS 6724

This product is suitable for fixed laying in the line with AC 50Hz and rated voltage of 0.6/1kV and below for power transmission and distribution.

Product Details

Application
This product is suitable for fixed laying in the line with AC 50Hz and rated voltage of 0.6/1kV and below for power transmission and distribution.

Operation Characteristic
1.Rated voltage:0.6/1kV.
2.Long-term permission working temperature of cable conductor is 90℃.
3.The minimum allowable bending radius of cable is 8 times of outer diameter of thecable.

Standard
BS 6724

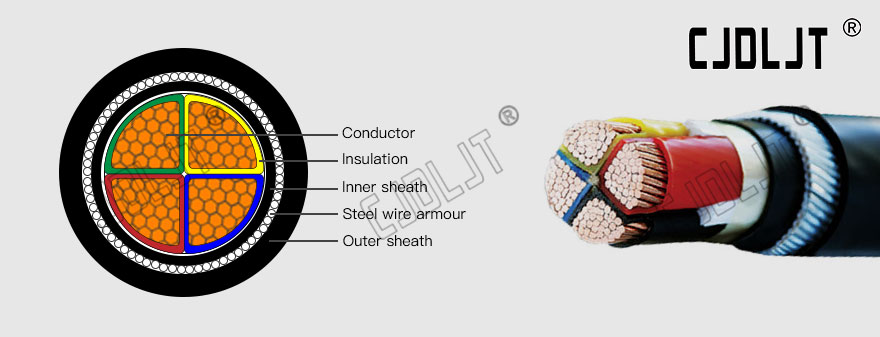

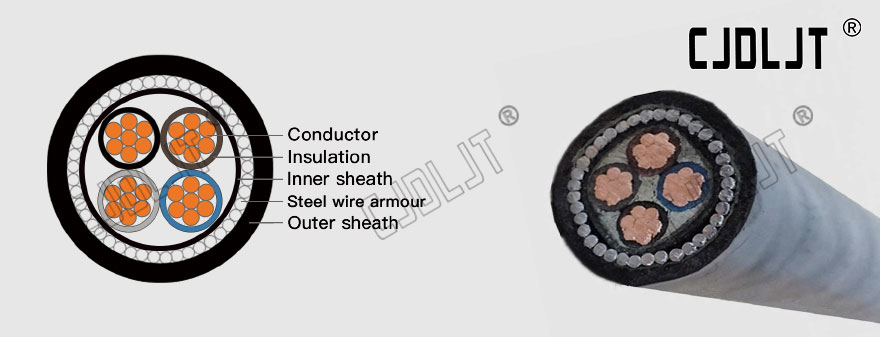

Cable Structure
Conductor:Copper
Insulation:XLPE
Inner sheath:LSZH
Armour:Steel Wire Armour
Outer sheath:LSZH

Specifications

Core*Nominal cross-sectional area of conductor Thickness of insulation Thickness of extruded bedding Diameter of armour wire Thickness of oversheath Approximate overall diameter Max DC resistance of conductor at 20℃
mm2 mm mm mm mm mm Ω/km
4*1.5 0.6 0.8 0.9 1.3 13.3 12.1
4*2.5 0.7 0.8 0.9 1.4 15.0  7.41
4*4 0.7 0.8 0.9 1.4 16.4 4.61
4*6 0.7 0.8 1.25 1.5 18.7 3.08
4*10 0.7 0.8 1.25 1.5 21.1 1.83
4*16 0.7 0.8 1.25 1.6 23.4 1.15
4*25 0.9 1.0  1.6 1.7 28.9 0.727
4*35 0.9 1.0  1.6 1.8 31.9 0.524
4*50 1.0  1.2 2.0  2.0  36.6 0.387
4*70 1.1 1.2 2.0  2.2 41.9 0.268
4*95 1.1 1.4 2.5 2.3 48.1 0.193
4*120 1.2 1.4 2.5 2.4 52.6 0.153
Note:Circular or compacted circular stranded conductor(class 2)

Core*Nominal cross-sectional area of conductor Thickness of insulation Thickness of extruded bedding Diameter of armour wire Thickness of oversheath Approximate overall diameter Max DC resistance of conductor at 20℃
mm2 mm mm mm mm mm Ω/km
4*25 0.9 1.0  1.6 1.7 26.1 0.727
4*35 0.9 1.0  1.6 1.8 28.6  0.524
4*50 1.0  1.0  1.6 1.9 32 0.387
4*70 1.1 1.2 2.0  2.1 37.7 0.268
4*95 1.1 1.2 2.0  2.2 41.7 0.193
4*120 1.2 1.4 2.5 2.3 47.1 0.153
4*150 1.4 1.4  2.5 2.4 51.4 0.124
4*185 1.6 1.4  2.5 2.6 56.6 0.0991
4*240 1.7  1.6 2.5  2.7  63.0  0.0754
4*300 1.8 1.6 2.5  2.9 68.8 0.0601
4*400 2.0  1.8 3.15 3.2 78.1 0.047
Note:Shaped stranded conductor(class 2)
